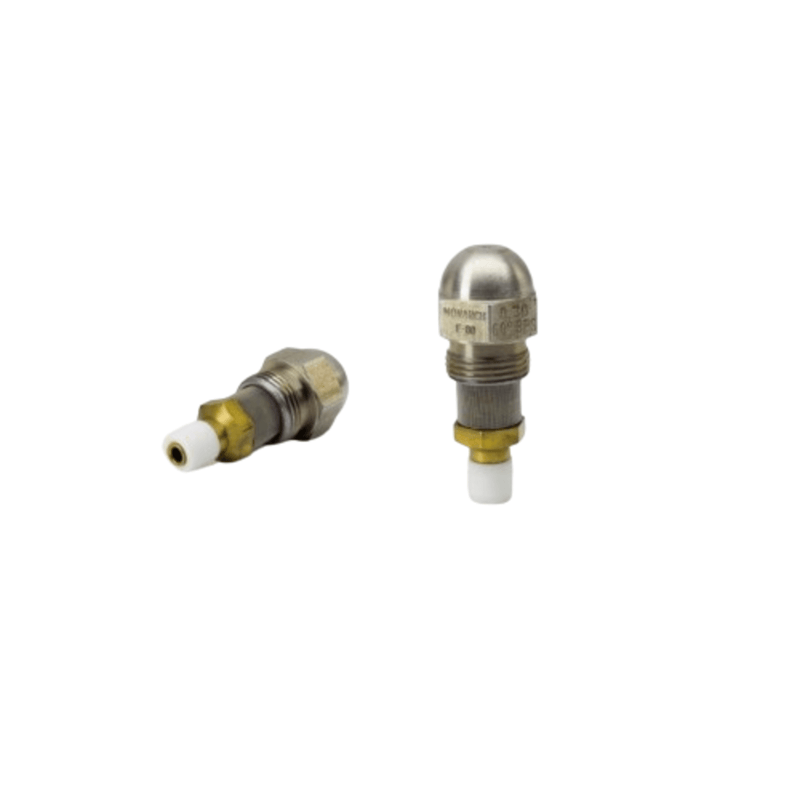

2.00 60 BPS - Monarch - Oil Nozzle

Here are details for the 2.00 60 BPS - Monarch - Oil Nozzle:

🔧 Product Specifications

• Model: 2.00 60 BPS
• Type: BPS Series – By-Passing Nozzle
• Spray Pattern: Variable orifice flow via bypassing fluid from the swirl chamber
• Spray Angle: 60° (with potential widening of 5°–10° when bypass is fully open)
• Flow Rate: 2.00 GPH (rated at 100 psi on #2 fuel oil)
• Material:
  • Nozzle tip & disc: High-chrome stainless steel
  • Strainer support: Brass with Monel screen (120 mesh)
  • O-ring: Viton
