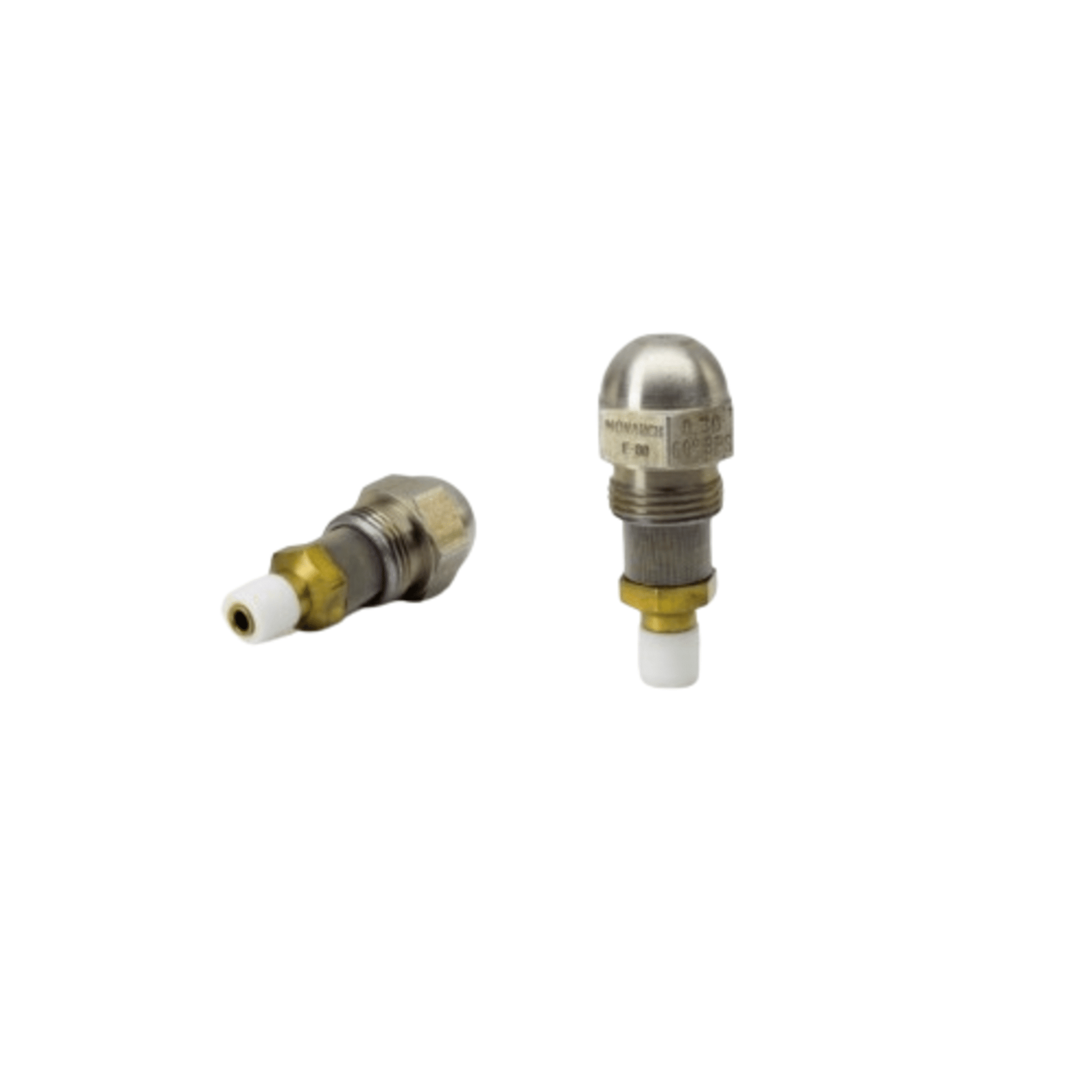

24.00 30 BPS - Monarch - Oil Nozzle

Here’s a detailed overview of the Monarch 24.00 30 BPS Oil Nozzle:

🔧 Product Specifications

• Model: 24.00 30 BPS
• Flow Rate: 24.00 GPH (Gallons per Hour)
• Spray Angle: 30°
• Spray Pattern: BPS (By-Passing Solid Cone)
• Design Features:
  • Bypass Functionality: Allows variable orifice flow rates by diverting fluid from the swirl chamber.
  • Pressure Range: Operates at 100 PSI standard; capable of up to 250 PSI.
  • Viscosity Compatibility: Suitable for oils up to 70 SSU.
  • Materials:
    • Tip & Disc: High-chrome stainless steel
    • Strainer Screen: Monel (typically 80 mesh for this size)
    • O-Ring: Viton
