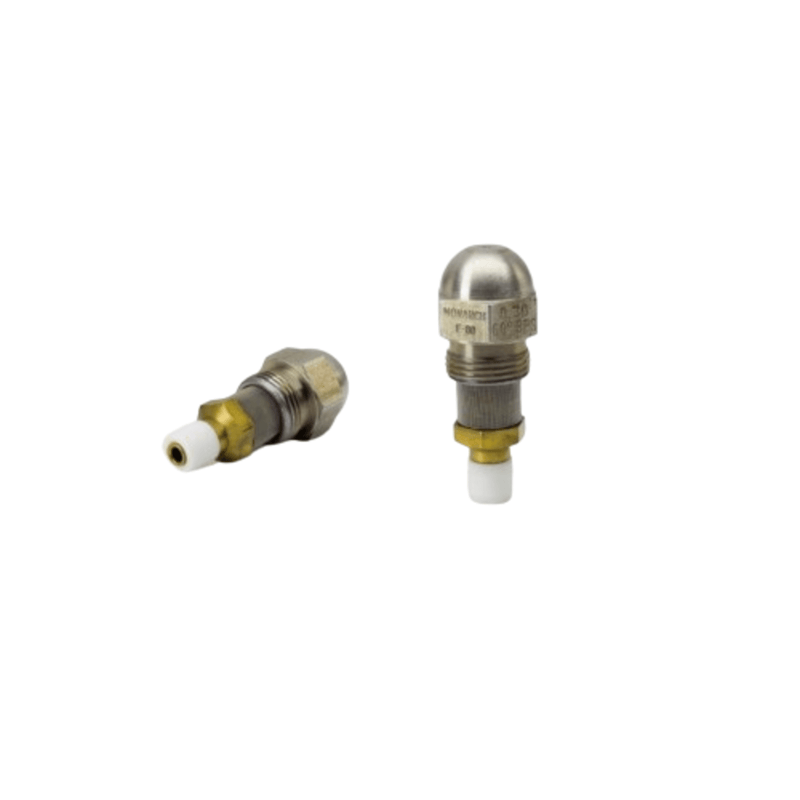

3.50 30 BPS - Monarch - Oil Nozzle

Here are the details for the Monarch 3.50 30 BPS Oil Nozzle:

🔧 Product Specifications

• Model: 3.50 30 BPS
• Series: BPS – By-Passing Nozzle
• Flow Rate: 3.50 GPH
• Spray Angle: 30 degrees
• Spray Pattern: Variable orifice via bypass
  • Flow rate is regulated by controlling bypass line pressure
  • Spray angle widens by 5°–10° when bypass is fully open
• Operating Pressure:
  • Rated at 100 PSI on #2 fuel oil
  • Can operate up to 250 PSI for oils with viscosity up to 70 SSU
  • Special testing available for pressures up to 300 PSI
• Materials:
  • Tip & Disc: High-chrome stainless steel
  • Strainer Support: Brass with Monel 120 mesh screen and Viton O-ring
