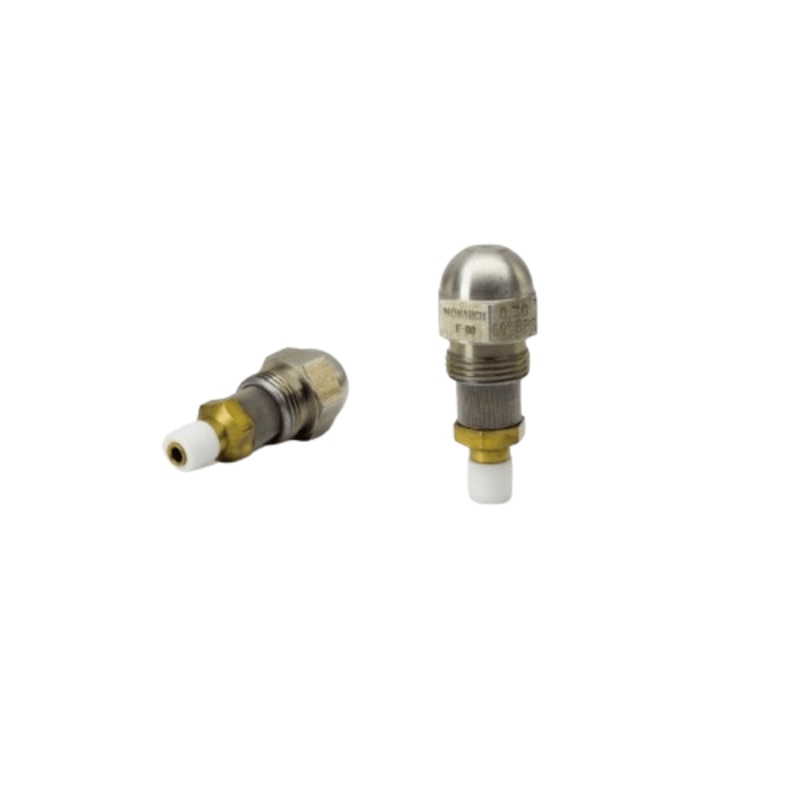

50.00 60 BPS - Monarch - Oil Nozzle

Here are the details for the 50.00 60 BPS - Monarch Oil Nozzle:

🔧 Product Specifications

• Model: 50.00 60 BPS
• Type: BPS (By-Passing) Nozzle
• Spray Angle: 60°
• Flow Rate: 50.00 GPH
• Application: Designed for high-capacity oil burners requiring adjustable flow via bypass pressure
• Material:
  • Tip & Disc: High-chrome stainless steel
  • Strainer Support: Brass with Monel screen
  • O-ring: Viton
• Operating Pressure: Rated at 100 psi; can operate up to 250 psi
• Spray Behavior: Spray angle increases by 5°–10° when bypass is fully open
• Quality Assurance: Monarch nozzles are individually tested for:
  • Flow rate accuracy
  • Spray angle tolerance
  • Spray symmetry and quality
  • High-pressure flutter at 150 ps
