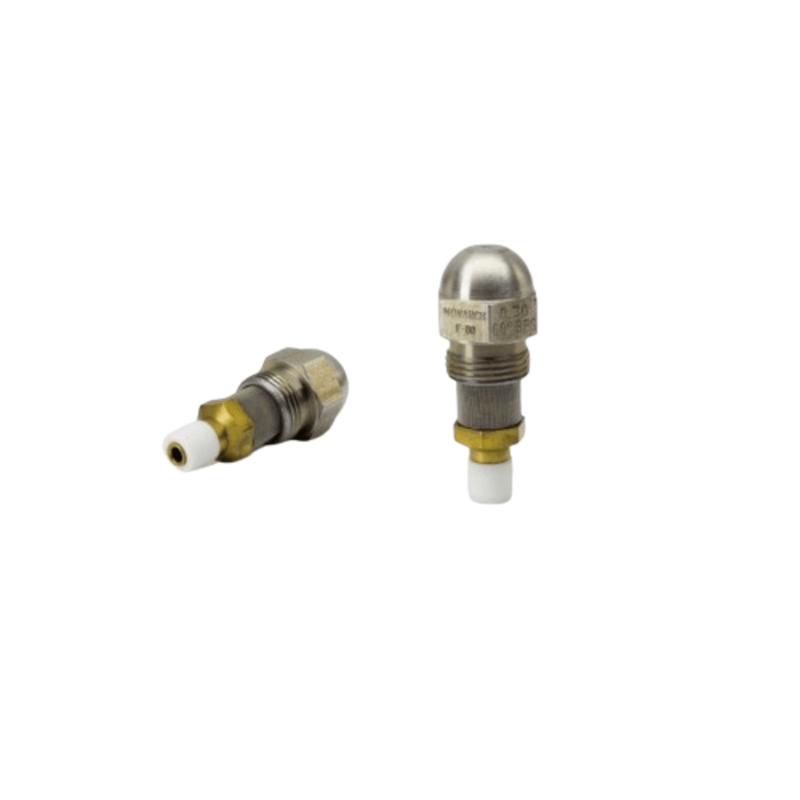

6.00 80 BPS - Monarch - Oil Nozzle

Here’s a detailed overview for the 6.00 80 BPS - Monarch Oil Nozzle:

🔧 Product Overview

• Type: BPS (By-Passing) Oil Nozzle
• Manufacturer: Monarch MFG Works LLC
• Functionality: These nozzles regulate flow by bypassing fluid from the swirl chamber. The flow rate is controlled via the bypass line pressure.
• Materials:
  • Tip & Disc: High-chrome stainless steel
  • Strainer Support: Brass with Monel screen and Viton O-ring
• Operating Pressure: Rated for 100 psi on #2 fuel oil; can operate up to 250 psi
• Spray Angles Available: 30°, 45°, 60°, 80°, 90° (with some models up to 100°)
• Capacities: From 0.5 to 100.00 GPH depending on configuration
