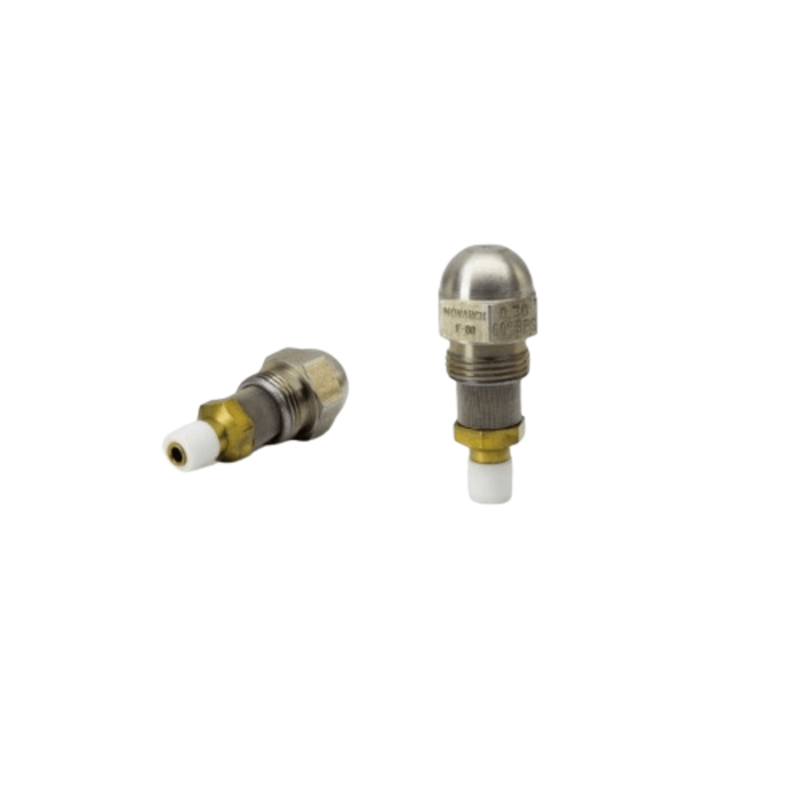

6.50 30 BPS - Monarch - Oil Nozzle

Here are the details for the 6.50 30 BPS Monarch Oil Nozzle is a specialized BPS (By-Passing) nozzle designed for industrial oil burner applications. Here's a detailed breakdown of its specifications and usage:

🔧 Key Specifications

• Model: 6.50 30 BPS
• Flow Rate: 6.50 US gallons per hour (GPH) at 100 psi with the bypass line closed
• Spray Angle: 30° (can widen by 5°–10° when the bypass line is fully open)
• Fuel Compatibility: #2 fuel oil
• Operating Pressure: Standard at 100 psi; can be used up to 250 psi for oils with viscosity up to 70 SSU (approx. 13 cSt)
• Construction Materials:
  • Tip & disc: High-chrome stainless steel
  • Strainer: Monel screen (120 mesh for ≤13.50 GPH)
  • Body & fittings: Brass
  • O-ring: Viton
