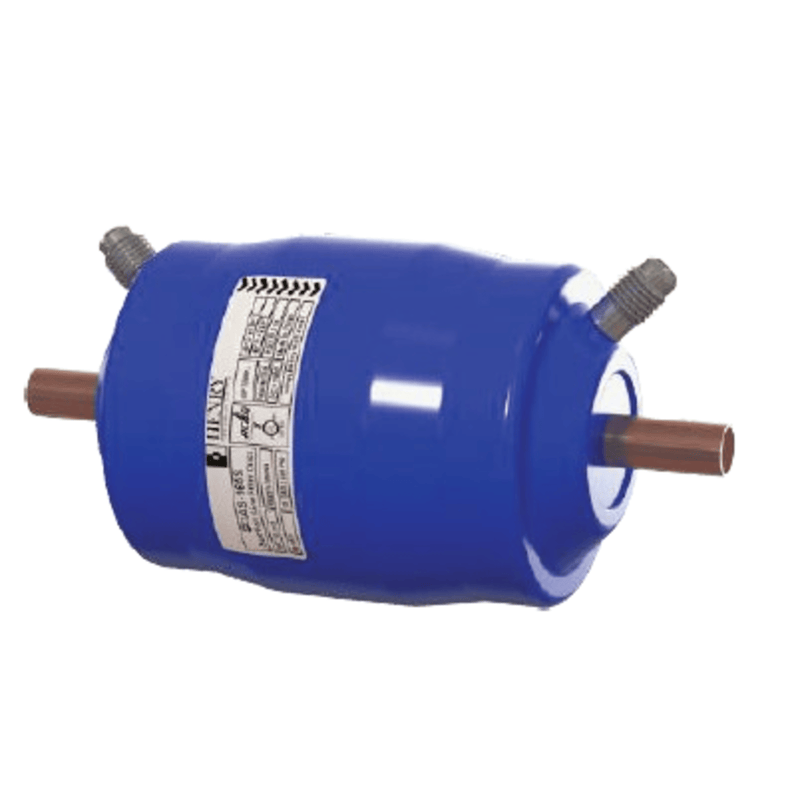

SDAS-306S - Henry - 3/4 ODS - SDAS-305S, Suction Line Filter/Drier
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$59.51
$59.51
-
$59.51
Current price
$59.51
Availability:
Call for Availability
The Henry SDAS-306S is a suction line filter/drier designed for use in refrigeration and air-conditioning systems. Here are the detailed specifications:
🔧 Product Specifications
- Model: SDAS-306S
- Connection Size: 3/4" ODS (Outside Diameter Solder)
- Application: Suction line
- Refrigerant Compatibility: HCFC, HFC, and CO₂ refrigerants
🛠️ Key Features
- Core Composition: 80% Molecular Sieve, 20% Activated Alumina
- Filtration: Removes moisture, acid, and solid contaminants
-
Construction:
- Shell: Powder-coated carbon steel
- Connections: Solid copper
- Filter Pad: Non-woven polyester
- Mesh: Stainless steel
- Monitoring: Double 1/4” SAE flare connections with Schrader valves for pressure drop monitoring
- Maximum Working Pressure: 650 PSI (45 bar)
- Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
