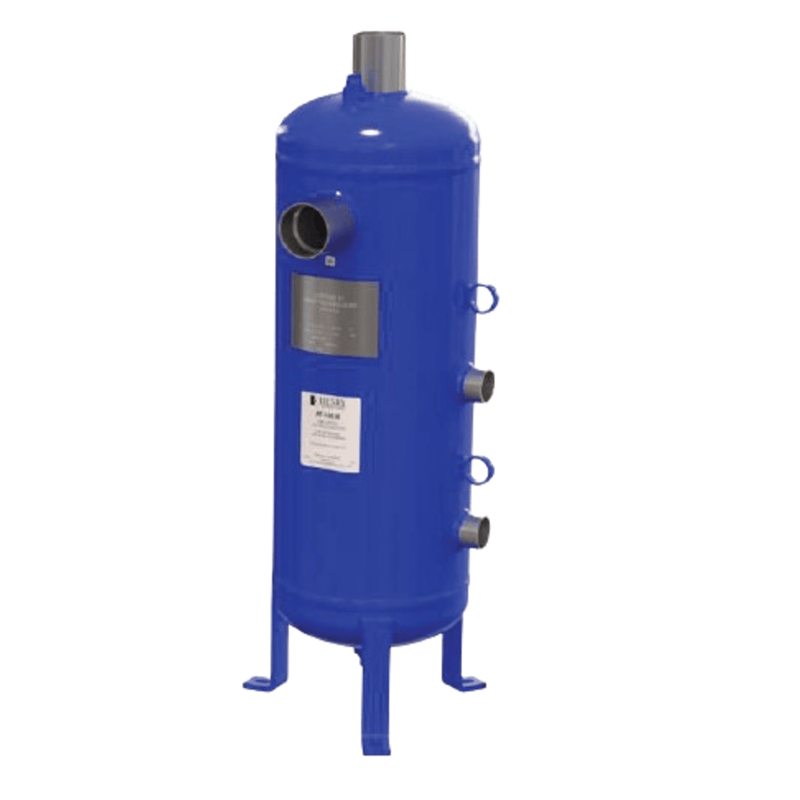

AF-12048 - Henry - 3-1/8 ODS - 79.375mm - Suction Line Accumulator

The Henry AF-12048 is a vertical suction line accumulator designed for large-scale refrigeration and air conditioning systems. Here's a detailed overview of its specifications and features:

🔧 Technical Specifications

• Model: AF-12048
• Connection Size: 3-1/8" ODS (79.375 mm)
• Mounting: Vertical with mounting legs
• Weight: Approx. 195 lbs
• Dimensions: 12.75" diameter × 52.13" length
• Boil-Out Connection: 1-5/8"
• Max Flow Capacity: 155 CFM

⚙️ Functional Features

• Primary Function:
  • Temporarily stores and meters the return of liquid refrigerant and oil to the compressor.
  • Prevents liquid slugging, which can damage compressors.
• Controlled Return: Ensures only vapor returns to the compressor, maintaining system efficiency and proper oil levels.
• Refrigerant Compatibility: Suitable for ammonia, HFC, and HCFC refrigerants, as well as other non-corrosive industrial fluids.
• Construction:
  • Heavy-duty steel body
  • Powder-coated finish for corrosion resistance
  • Optional heat exchanger models available
