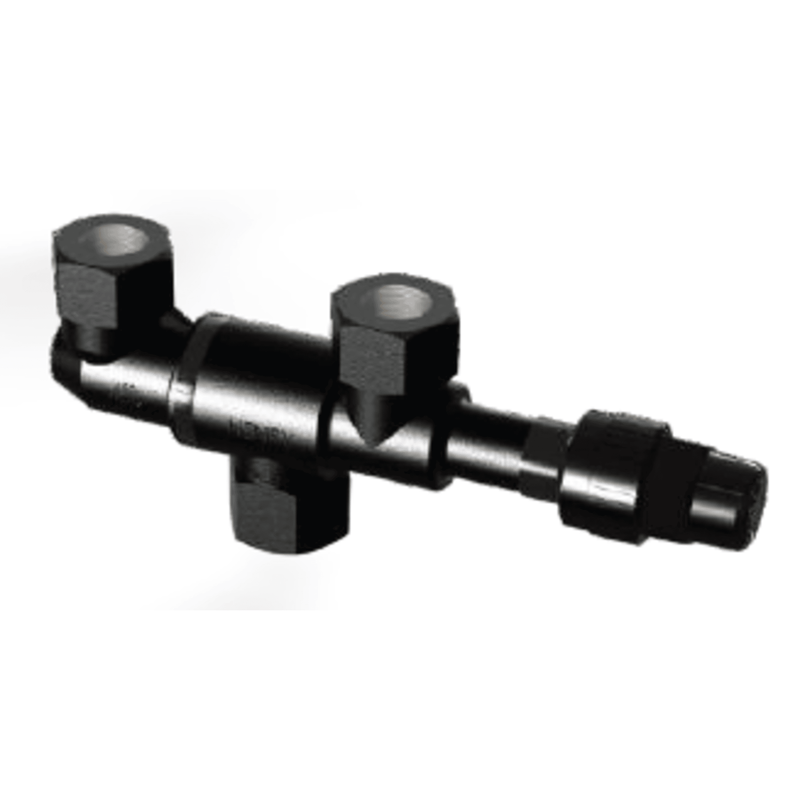

8022A - Henry - Three-Way Dual Shutoff Valve - 3/4FTP

The Henry 8022A is a reliable three-way valve designed for efficient fluid control in industrial applications. Here are the detailed technical specifications:

• Type: Three-Way Valve
• Model: 8022A
• Manufacturer: Henry Technologies
• Connection Type: Female Pipe Thread (FPT)
• Size: 3/4 inch
• Material: Steel
• Stem Type: Packed Stem
• Shut-Off: Dual Shut-Off
• Maximum Allowable Working Pressure (MAWP): 450 psi (31 barg)
• Operating Temperature Range: -29°C to +149°C
• Overall Length: 8.57 inches
• Weight: 2 lbs

This valve is designed to allow the replacement of one pressure relief device while the other continues to protect the pressure vessel, ensuring continuous protection against over-pressure during servicing
