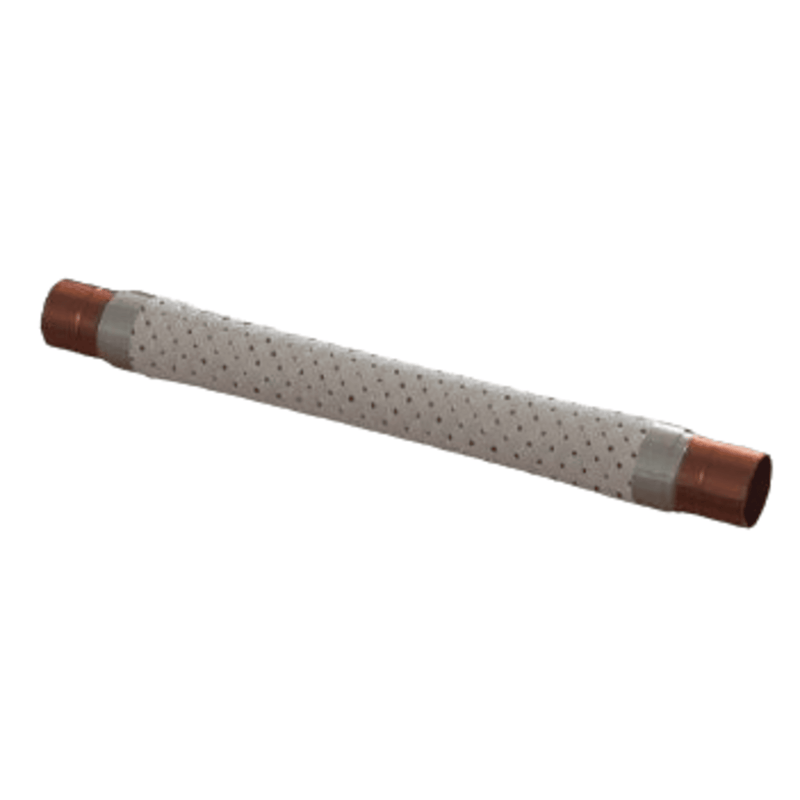

VS-1/2 - Henry - 1/2 ODS - Vibration Eliminator - All SS

The Henry VS-1/2 is a vibration eliminator with 1/2" ODS (solder) connections, designed to reduce compressor-induced vibration in refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications:

🔧 Product Overview

• Model: VS-1/2
• Connection Size: 1/2" ODS (Outside Diameter Solder)
• Series: VS (All Stainless Steel)

🛠️ Key Features

• Construction:
  • All stainless steel: hose, braid, and ferrules
  • TIG welded joints — eliminates the need to wet-rag during installation
• Function: Absorbs vibration from compressors to prevent damage to piping and system components
• Installation: Suitable for both suction and discharge lines
• Refrigerant Compatibility: HCFC, HFC, CO₂, and associated oils

📐 Technical Specifications

• Maximum Working Pressure: 60 bar (870 PSIG)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Leak Testing: Helium leak tested
