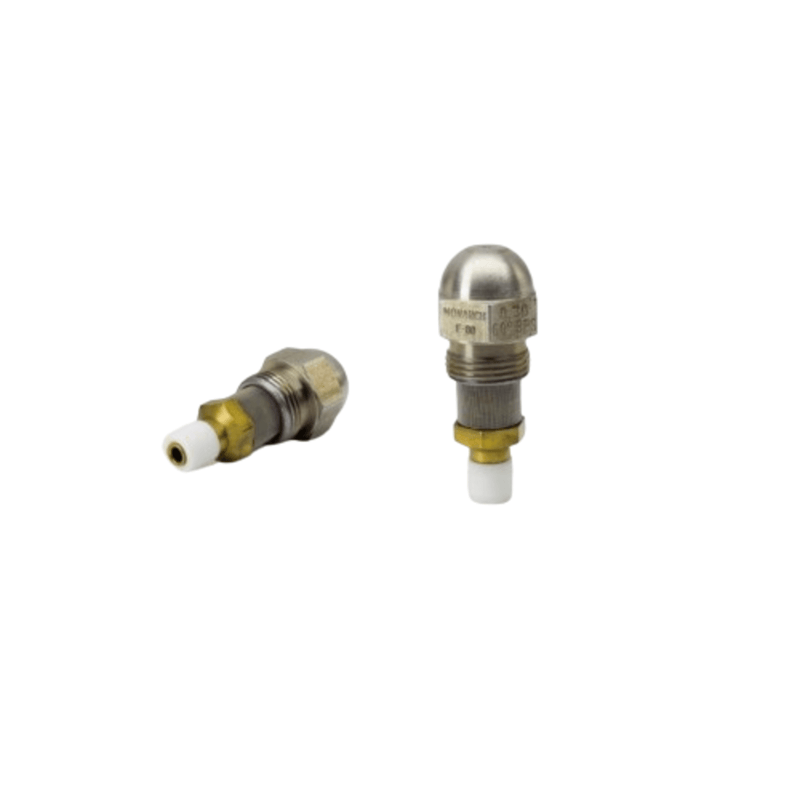

12.50 80 BPS - Monarch - Oil Nozzle
SKU MON-12.5080BPS
Original price
$103.12
-
Original price
$103.12
Original price
$103.12
$103.12
-
$103.12
Current price
$103.12
Availability:
Call for Availability
The 12.50 80 BPS - Monarch Oil Nozzle is part of Monarch’s BPS (By-Passing) Series, designed for industrial and agricultural oil burner systems.
🔧 Technical Specifications
- Model: 12.50 80 BPS
- Flow Rate: 12.50 GPH
- Spray Angle: 80°
- Spray Pattern: BPS (By-Passing)
-
Material:
- Tip & Disc: High-chrome stainless steel
- Strainer Support: Brass with 120 mesh Monel screen
- O-ring: Viton
- Operating Pressure: Rated at 100 psi on #2 fuel oil
- Spray Angle Variation: Widens by 5°–10° when the bypass line is fully open
