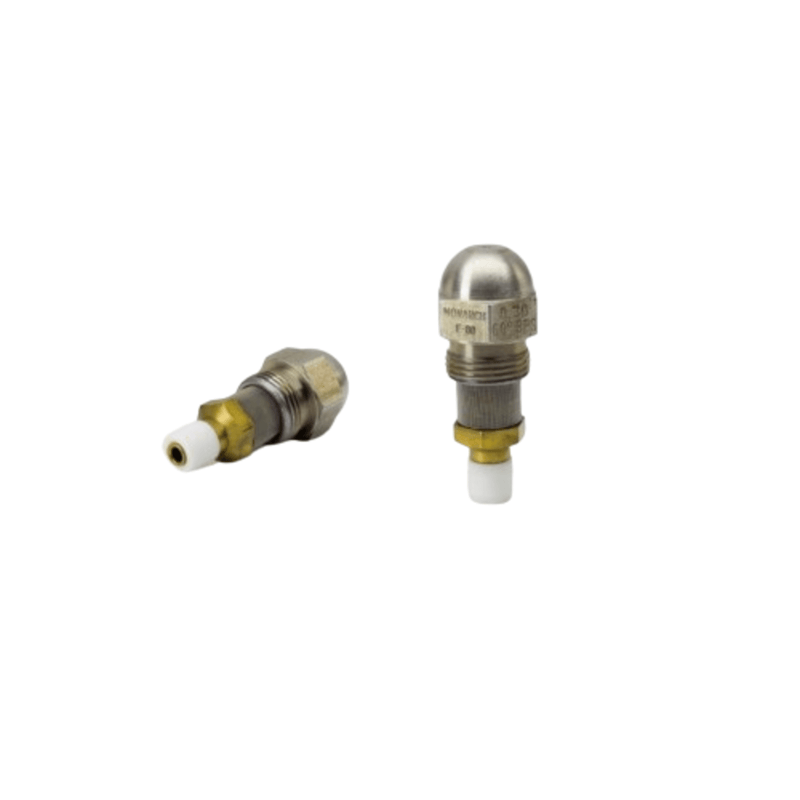

6.50 60 BPS - Monarch - Oil Nozzle

Here’s a detailed overview of the Monarch 6.50 60 BPS Oil Nozzle:

🔧 Technical Specifications

• Model: 6.50 60 BPS
• Flow Rate: 6.50 GPH (Gallons Per Hour) at 100 PSI
• Spray Angle: 60°
• Spray Pattern: BPS Series – Variable orifice via bypass
• Material:
  • Tip & disc: High-chrome stainless steel
  • Strainer: Monel mesh (typically 120 mesh)
  • Body & fittings: Brass
  • O-ring: Viton
• Viscosity Compatibility:
  • Standard: Oils up to 5 mm²/s (cSt)
  • Special versions: Up to 13 mm²/s (cSt)

🔄 BPS (By-Passing) Functionality

• Variable Flow Control: Achieved by bypassing fluid from the swirl chamber.
• Spray Angle Adjustment: Spray angle may widen by 5°–10° when bypass is fully open.
• Operating Pressure: Rated for 100 PSI; can operate up to 250 PSI for oils with higher viscosity.
