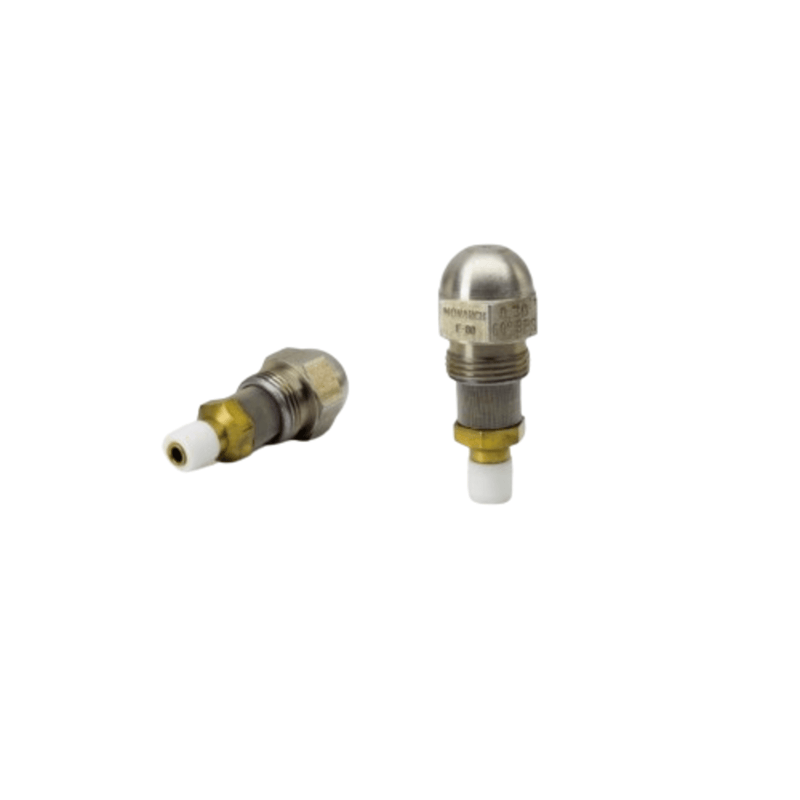

2.00 45 BPS - Monarch - Oil Nozzle

Here are details for the 2.00 45 BPS - Monarch - Oil Nozzle:

🔧 Product Specifications

• Model: 2.00 45 BPS
• Series: BPS (By-Passing Nozzle)
• Spray Pattern: Variable orifice flow via bypassing fluid from the swirl chamber
• Spray Angle: 45° (can widen by 5°–10° when bypass is fully open)
• Flow Rate: 2.00 GPH (rated at 100 psi on #2 fuel oil)
• Materials:
  • Tip & disc: High-chrome stainless steel
  • Strainer support: Brass with 120 mesh Monel screen
  • O-ring: Viton
