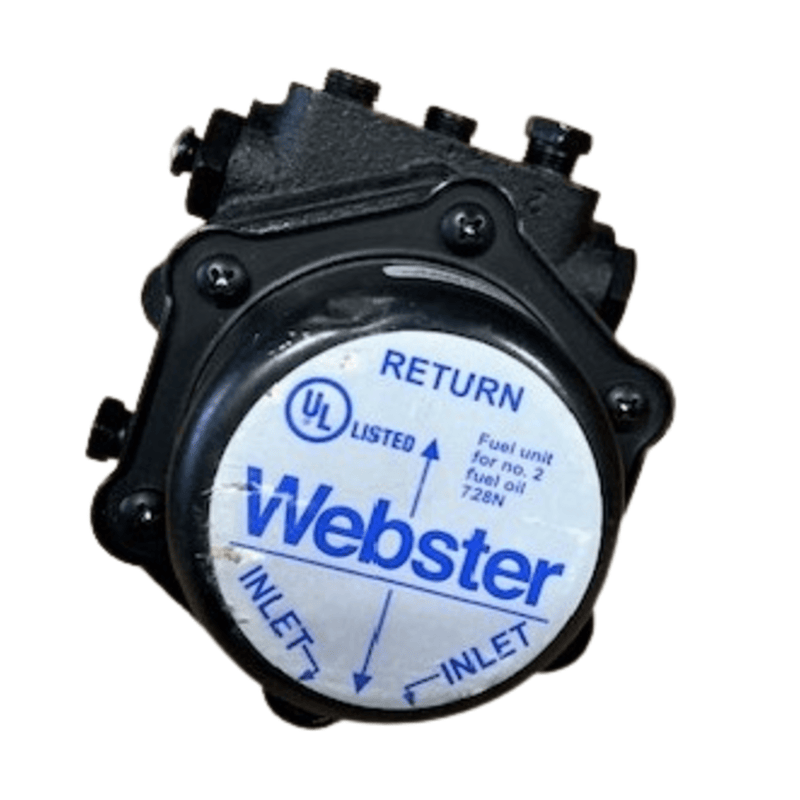

The Webster 2R223D-5BE13 is a two-stage fuel oil pump from the R Series, designed for efficient and reliable fuel transfer in heating systems.
🔧 Technical Specifications
- Model: 2R223D-5BE13
- Series: R Series
- Pump Type: Two-stage
- Speed: 1725 RPM
- Rotation / Nozzle Location: Clockwise (CW) from shaft end / Right side
- Capacity: 23 GPH (Gallons Per Hour)
- Pressure Range: 70–300 PSI
- Fuel Compatibility: Suitable for #1 and #2 fuel oil, and compatible with some biodiesel blends
⚙️ Key Features
- Two-Stage Operation: Enhances priming and lift capabilities, ideal for systems with long pipe runs or elevation differences.
- Durable Construction: Built for long service life in demanding heating environments.
- Integrated Pressure Regulation: Ensures consistent burner performance.
