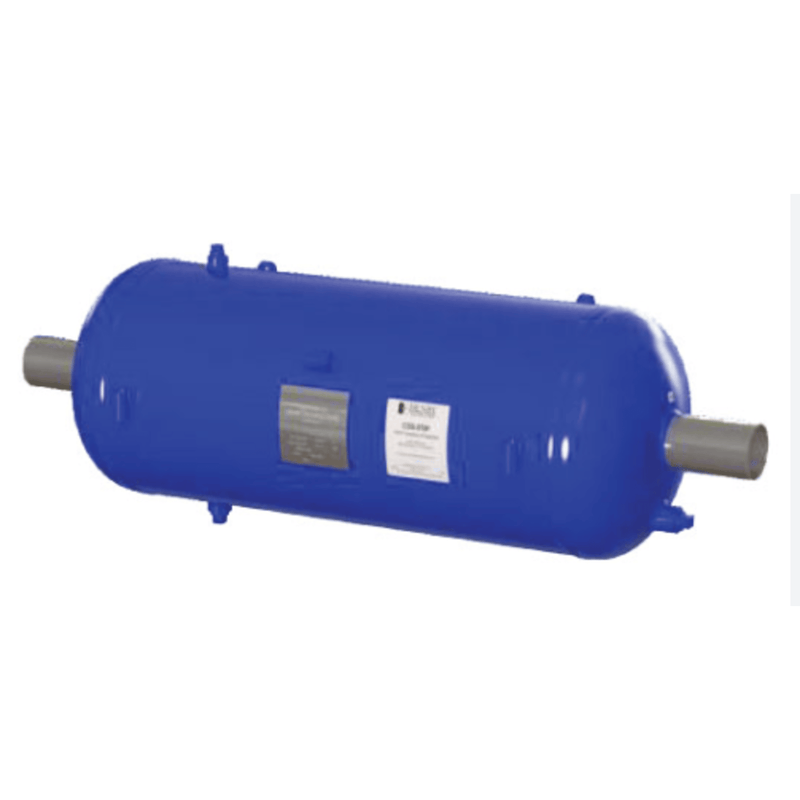

COS-205 - Henry - 4 BW - 102mm - Coalescing Oil Separator

The COS-205 by Henry Technologies is a Coalescing Oil Separator designed for use in large industrial refrigeration systems. Here are the key specifications and features:

🔧 Product Overview

• Model: COS-205
• Type: Coalescing Oil Separator
• Connection Size: 4" BW (Butt Weld)
• Diameter: 102 mm
• Application: Removes oil from discharge gas and returns it to the compressor, either directly or via an oil management system

🌟 Key Features

• High Efficiency: Utilizes a coalescing element to effectively separate oil from refrigerant vapor.
• Low Pressure Drop: Designed to maintain system efficiency.
• Replaceable Filter: Allows for easy maintenance and extended service life.
• Wide Compatibility: Suitable for CO₂ (R744), HCFC, and HFC refrigerants
• Operating Range:
  • Pressure: Up to 48 Barg (696.1 PSIg)
  • Temperature: -10°C to +130°C (+14°F to +266°F)
