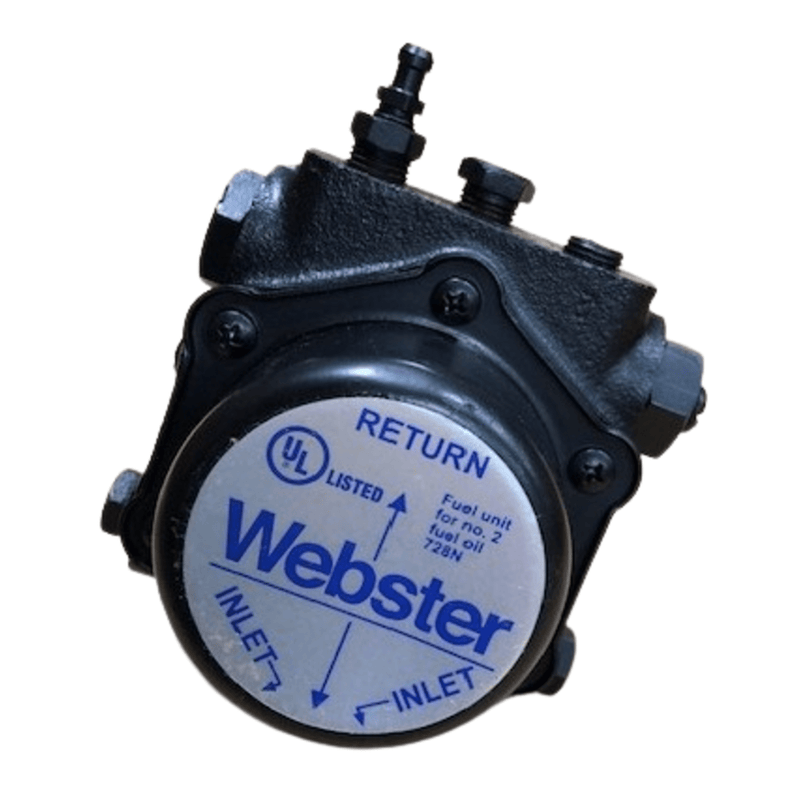

22R211C-5C14 - Webster - Two Stage Pump

The Webster 22R211C-5C14 is a two-stage fuel oil pump from the R Series, designed for high-speed, high-efficiency fuel delivery in heating systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: 22R211C-5C14
• Series: R Series
• Pump Type: Two-stage
• Speed: 3450 RPM
• Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Left side
• Capacity: 26 GPH (Gallons Per Hour)
• Maximum Pressure: 150 PSI
• Inlet/Outlet Connection: 1/4" NPTF
• Configuration: C-style body
• Weight: Approx. 8 lbs

⚙️ Features

• Rotary Filter: Built-in to reduce maintenance by filtering fuel before it enters the pumping chamber.
• Double Lip Seals: Provide enhanced leak protection and reduced friction compared to face-type seals.
• High-Speed Operation: Ideal for systems requiring consistent, high-pressure fuel delivery
