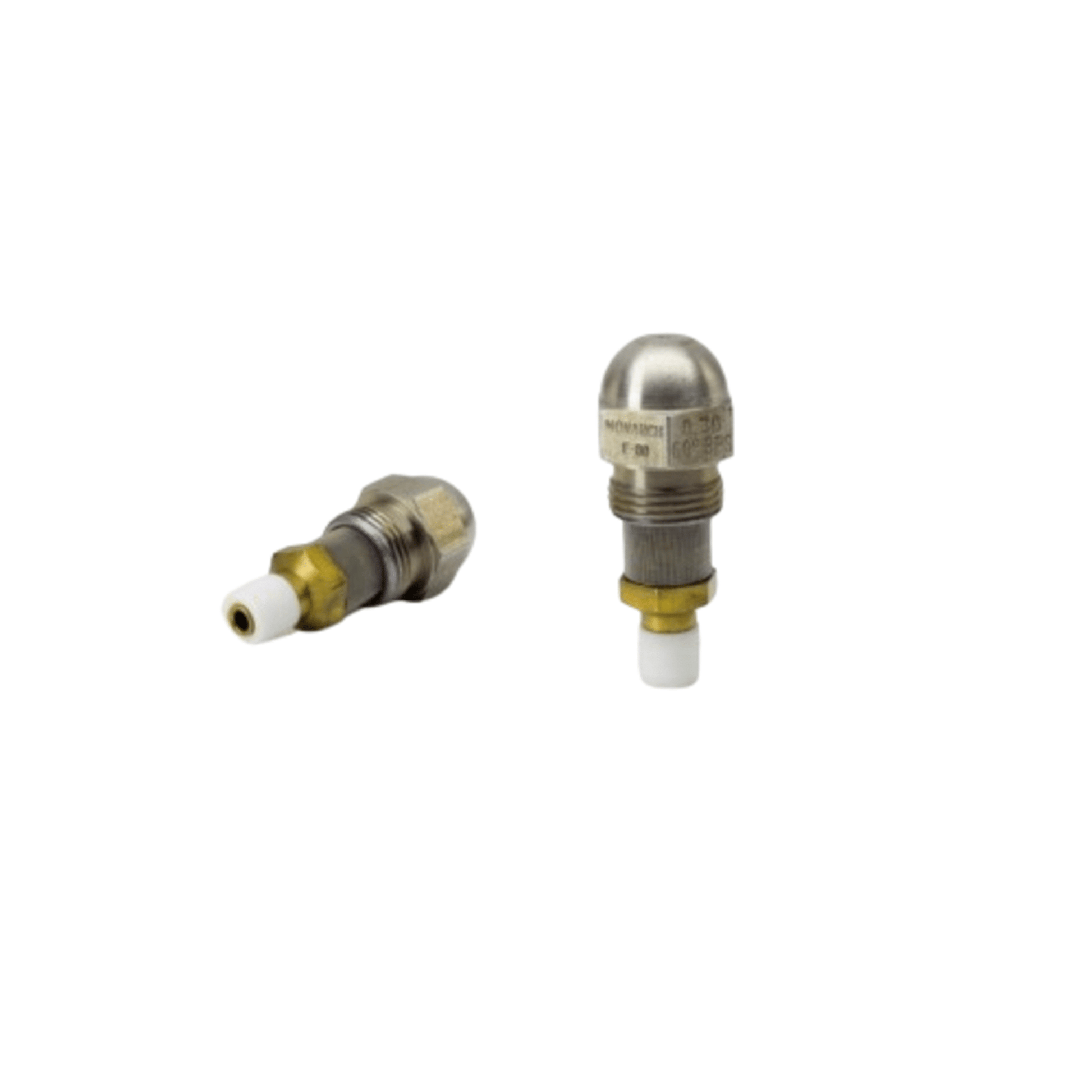

12.0030BPS - Monarch - Oil Nozzle

Here’s a detailed overview of the Monarch 12.00 30 BPS Oil Nozzle – 12 Pack:

🔧 Product Specifications

• Model: 12.0030BPS
• Flow Rate: 12.00 GPH (Gallons per Hour)
• Spray Angle: 30°
• Spray Pattern: BPS (By-Passing Solid Cone)
• Design Features:
  • Variable Orifice: Flow rate is regulated by bypass line pressure.
  • Spray Angle Adjustment: Spray angle widens by 5°–10° when bypass is fully open.
  • Operating Pressure: Rated for 100 PSI on #2 fuel oil; capable of up to 250 PSI.
  • Viscosity Compatibility: Handles oils up to 70 SSU.
  • Materials:
    • Tip & Disc: High-chrome stainless steel
    • Strainer Screen: Monel (120 mesh for this size)
