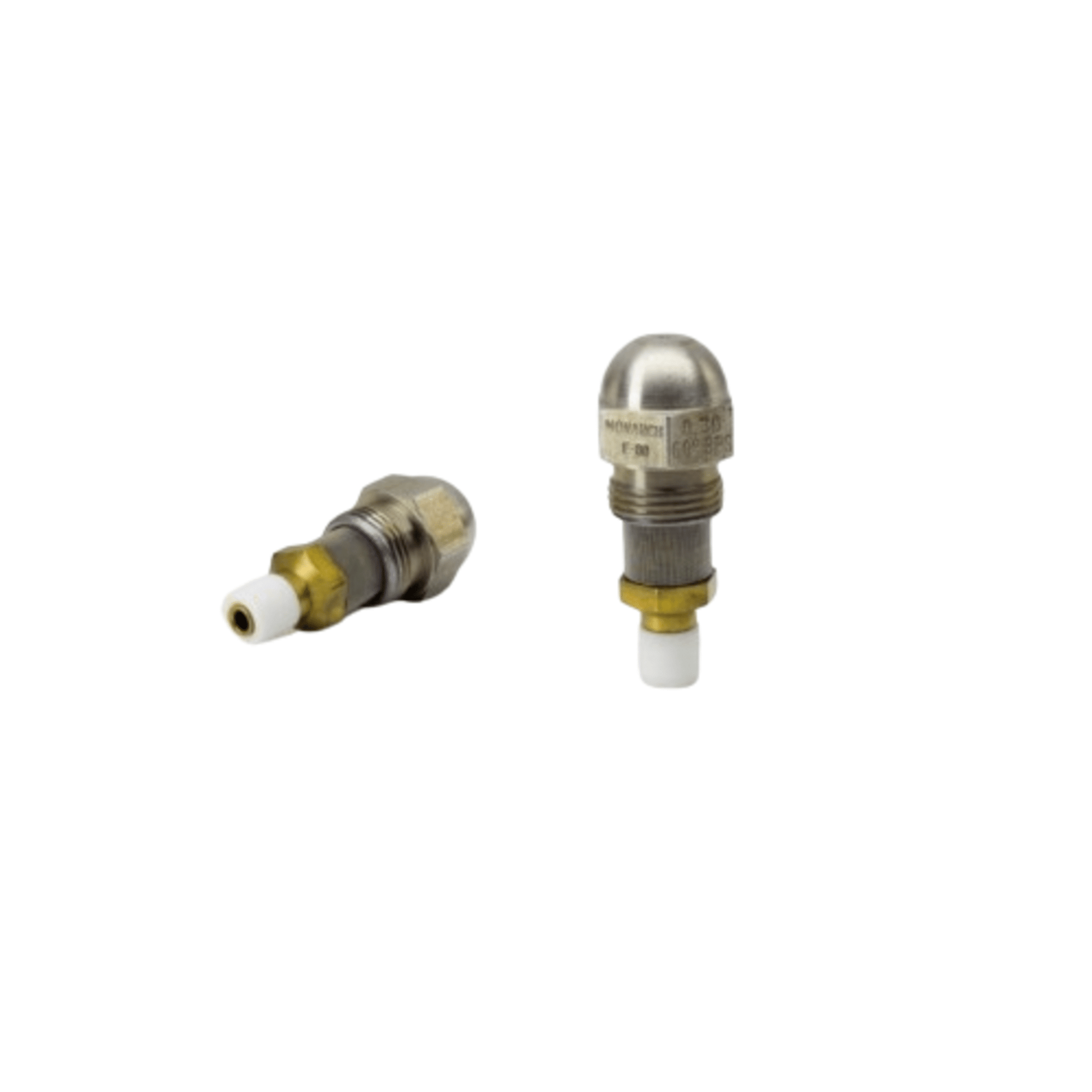

3.00 30 BPS - Monarch - Oil Nozzle

Here are the details for the Monarch 3.00 30 BPS  Oil Nozzle:

🔧 Product Specifications

• Model: 3.00 30 BPS
• Brand: Monarch MFG Works LLC
• Series: BPS (By-Passing)
• Spray Pattern: Variable orifice via by-pass flow
• Spray Angle: 30 degrees (widens by 5°–10° when by-pass is fully open)
• Flow Rate: 3.00 GPH (gallons per hour)
• Operating Pressure: Rated at 100 psi on #2 fuel oil; can operate up to 250 psi
• Materials:
  • Tip & disc: High-chrome stainless steel
  • Strainer: 120 mesh Monel screen
  • Support: Brass with Viton O-ring
