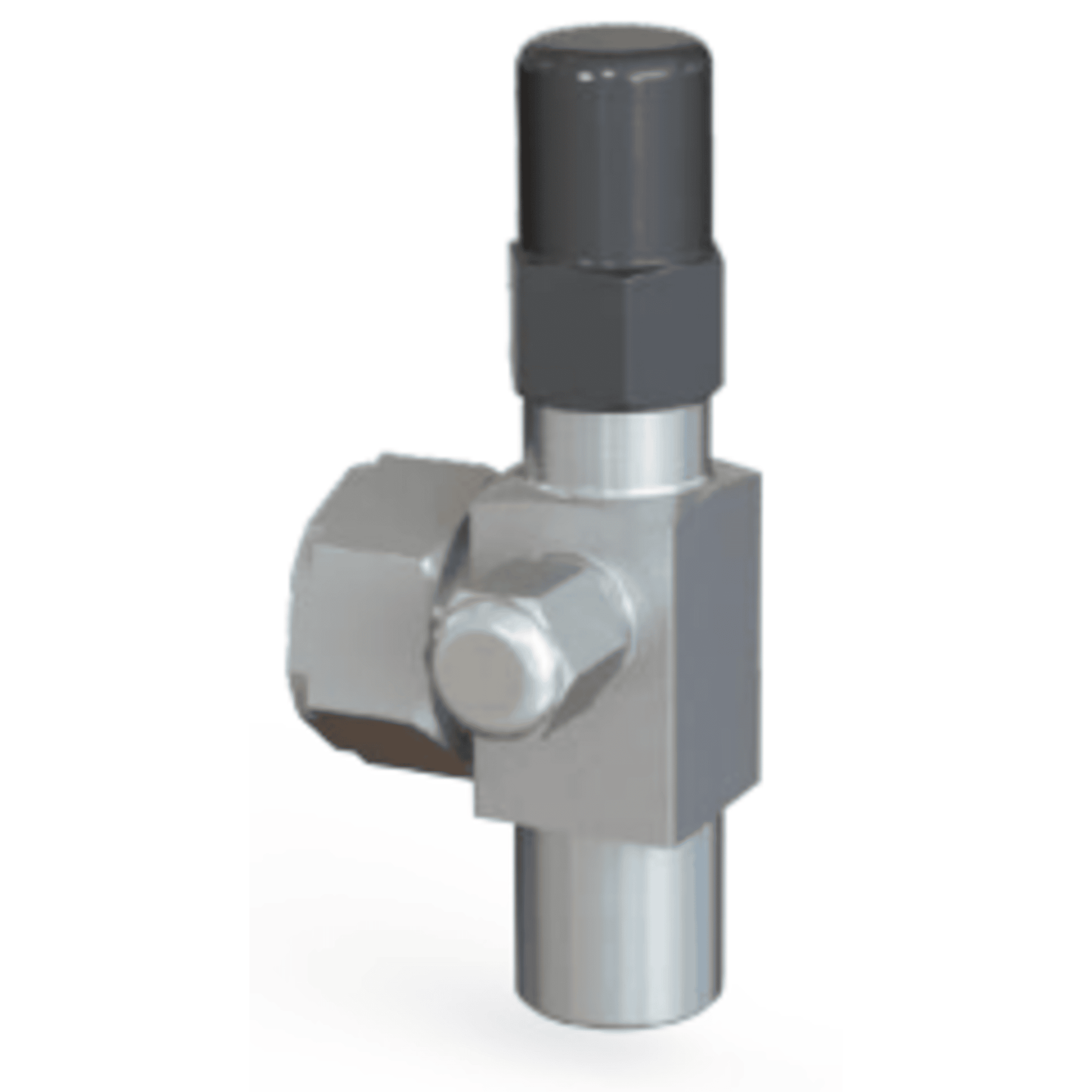

3-030-122 - Henry - Rotalock Valve

The Henry 3-030-122 is a Rotalock Valve designed for use in refrigeration and air-conditioning systems. Here's a detailed overview based on available information:

🔧 Product Overview

• Model: 3-030-122
• Manufacturer: Henry Technologies
• Type: Rotalock Valve
• Application: Used as a service valve and removable connection point, typically fitted to compressors and pressure vessels

📏 Specifications

• Material: Steel body with a polished steel spindle
• Seal: Graphite gland seal
• Coating: Tin-plated (salt spray tested to 300 hours)
• Access Ports: Dual 1/4" MSAE access ports
• Max Working Pressure: 42 bar (609.1 psig)
• Operating Temperature Range: –40°C to +150°C (–40°F to +302°F)
• Refrigerant Compatibility: HCFC, HFC, and HFO refrigerants (where materially compatible)
• Certifications: AS-NZS-1677.2 compliant
