Henry Technologies

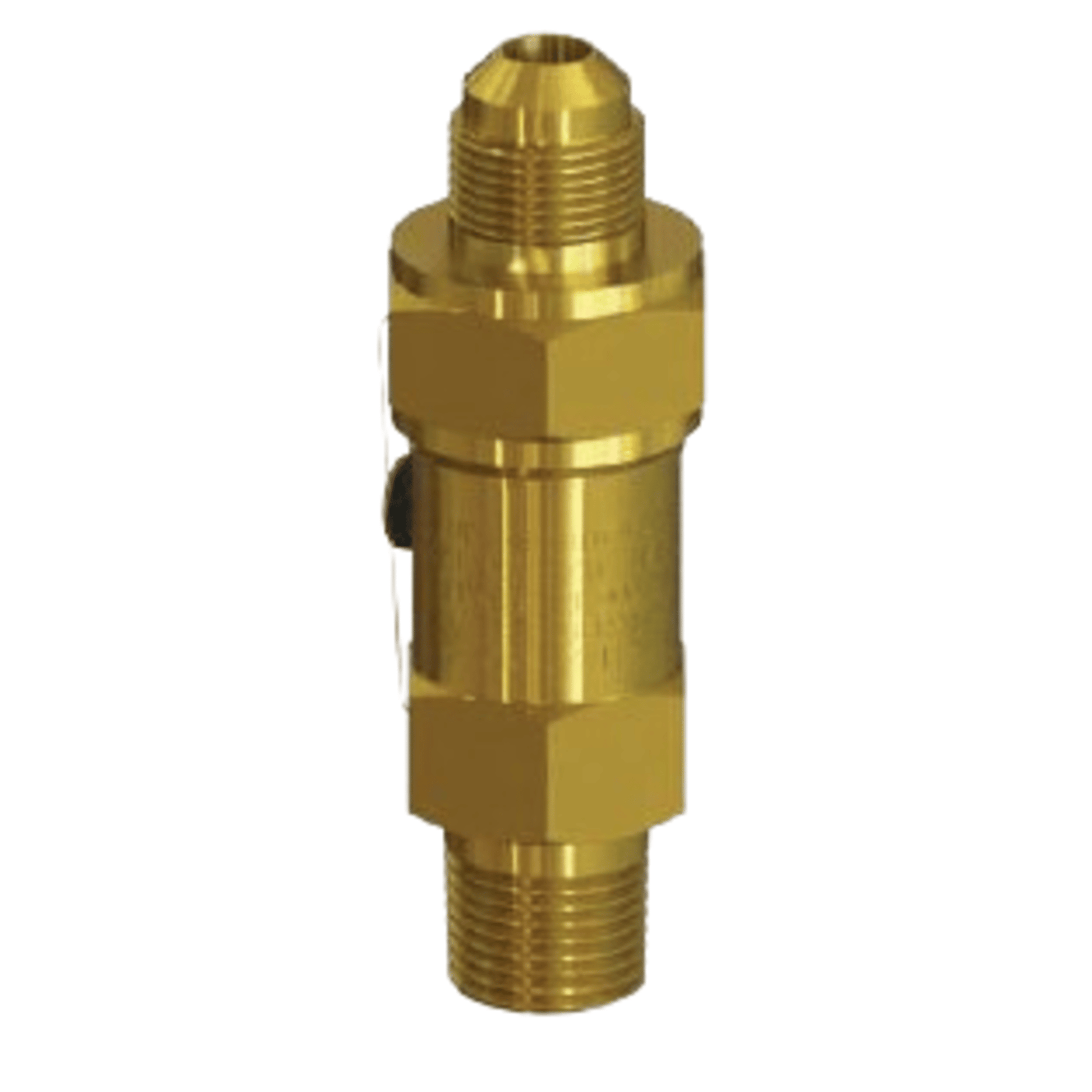

5231A-200 - Henry - Relief Valve 3/8 MPT-3/8 FL - 200 - Brass Straight-Thru Type

5231A-200 - Henry - Relief Valve 3/8 MPT-3/8 FL - 200 - Brass Straight-Thru Type

Ready to Order - Lead Times Vary

The Henry 5231A-200 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems. Here are the key specifications and features:

Product Details

  • Model: 5231A-200
  • Manufacturer: Henry Technologies
  • Type: Straight-Thru Pressure Relief Valve
  • Material: Brass
  • Inlet Connection: 3/8" MPT (Male Pipe Thread)
  • Outlet Connection: 3/8" FL (Flare)
  • Pressure Setting: 200 PSI
  • Design: Factory set and sealed
  • Certifications: ASME UV and National Board (NB) certified
  • Temperature Range: –20°F to +160°F
  • Applications: Suitable for refrigerants like R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids
