5702A-1160 - Henry - 3/4 NPTF-1 NPTF - 1160 - Brass Angle Type suitable for Transcritical CO2
Original price
$1,285.96
-
Original price
$1,285.96
Original price
$1,285.96
$1,285.96
-
$1,285.96
Current price
$1,285.96
Availability:
Call for Availability

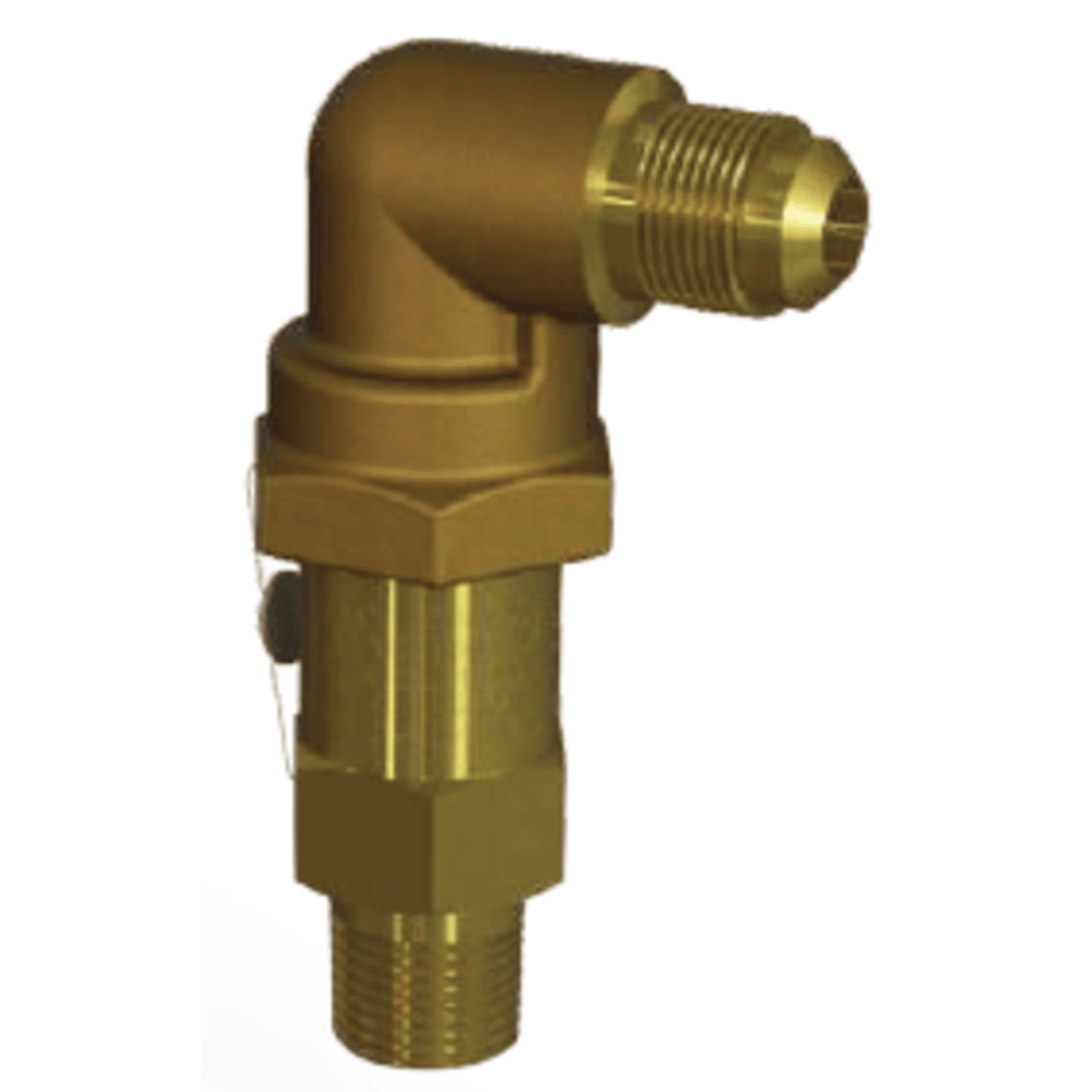

The Henry 5702A-1160 is a brass angle-type pressure relief valve with 3/4" NPTF inlet and 1" NPTF outlet, specifically designed for transcritical CO₂ applications. It is part of the 5702A series from Henry Technologies, which is engineered to handle the high pressures found in CO₂ refrigeration systems.
Key Specifications:
- Model: 5702A-1160
- Inlet/Outlet: 3/4" NPTF (inlet) × 1" NPTF (outlet)
- Material: Brass
- Valve Type: Angle
- Pressure Setting: 1,160 psi (approx. 80 bar)
- Application: Suitable for transcritical CO₂ systems
- Design: Factory set and sealed
- Certifications: Typically includes ASME-UV and National Board certifications
- Function: Designed to discharge refrigerant vapor only, not liquid
