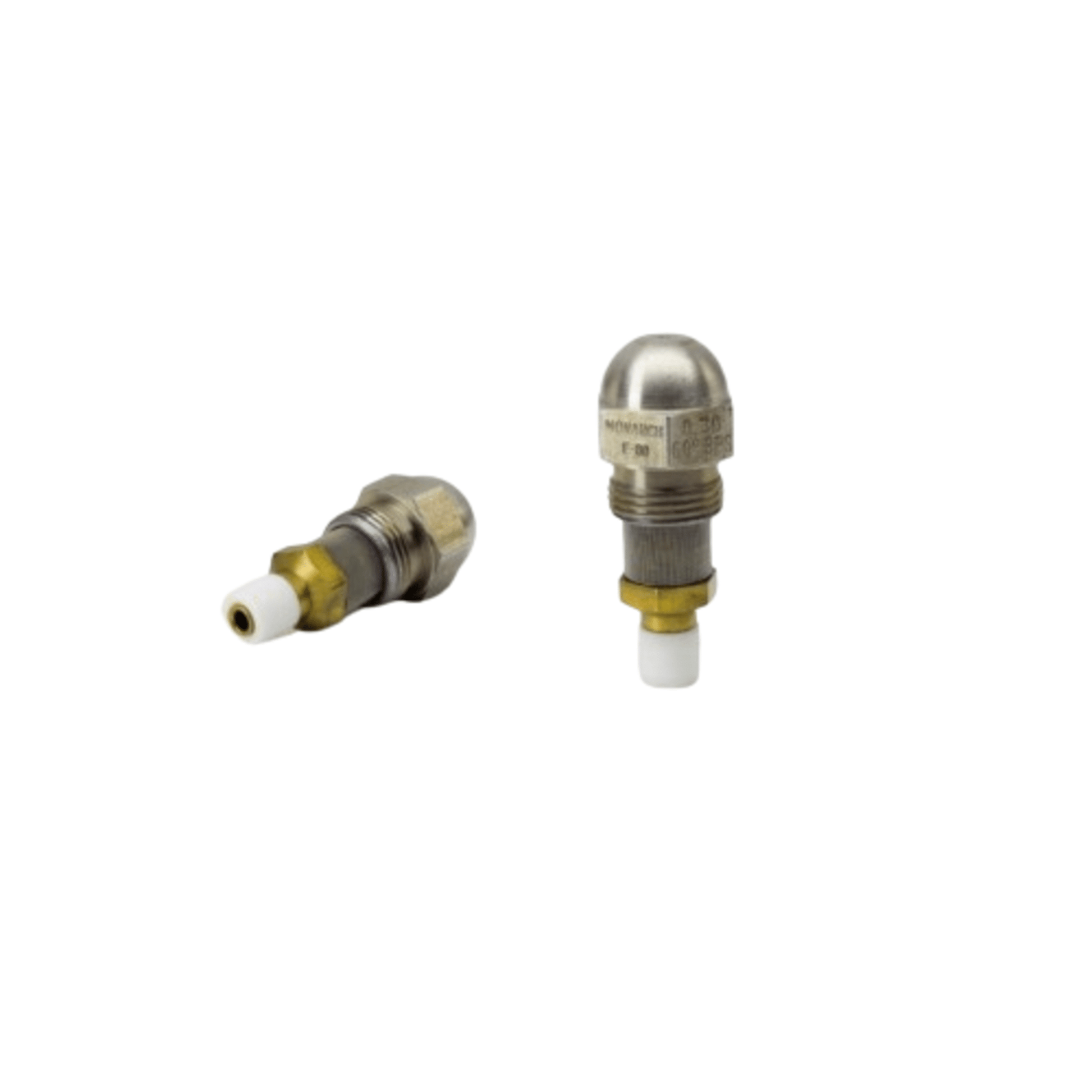

6.50 45 BPS - Monarch - Oil Nozzle

The Monarch 6.50 45 BPS Oil Nozzle is a specialized industrial nozzle designed for high-performance combustion systems, particularly where variable flow control is needed. Here's a detailed breakdown:

🔧 Product Specifications

• Model: 6.50 45 BPS
• Flow Rate: 6.50 GPH (Gallons Per Hour)
• Spray Angle: 45°
• Type: BPS (By-Passing) Nozzle
• Material:
  • Tip & Disc: High-chrome stainless steel
  • Strainer: Monel screen (120 mesh)
  • Support: Brass with Viton “O” ring

⚙️ Functionality

• By-Passing Design: Allows fluid to bypass the swirl chamber, enabling variable orifice flow rates.
• Pressure Control: Flow rate is regulated by adjusting the by-pass line pressure.
• Spray Angle Variability: Spray angle can widen by 5°–10° when the by-pass is fully open.
• Operating Pressure: Rated for 100 psi on #2 fuel oil, but can be used up to 250 psi for higher viscosity oils (up to 70 SSU)
