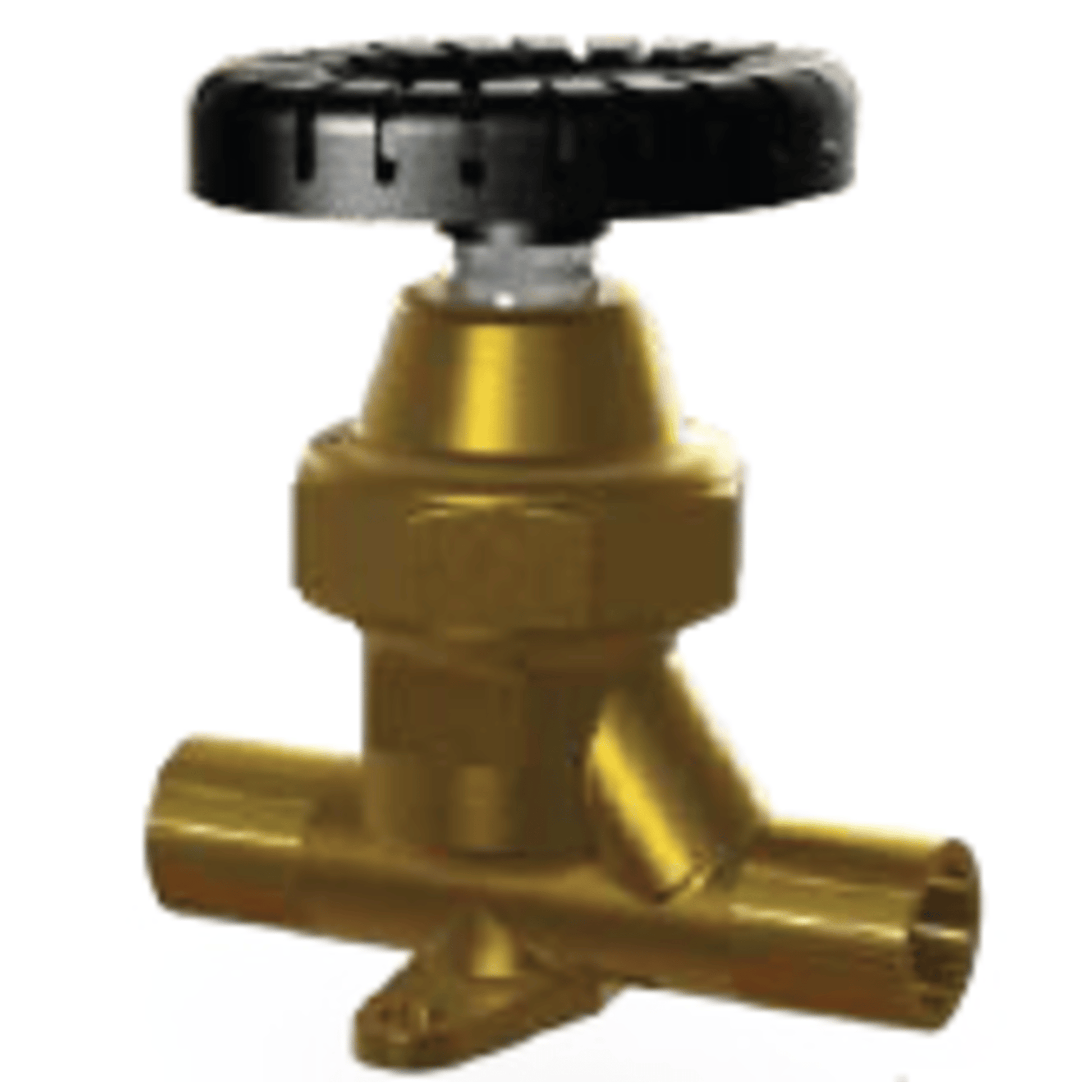

6231N - Henry - 1/4 ODS X 1/4 FL - Brass Globe Charging and Purging Valves

The Henry 6231N is the smallest model in the 6230N series of brass globe charging and purging valves, designed for compact refrigeration and HVAC systems. Here are the detailed specifications:

🔧 Henry 6231N Specifications

• Model: 6231N
• Connection Size: 1/4" ODS (solder) x 1/4" FL (flare)
• Metric Equivalent: 6.35 mm
• Valve Type: Globe charging and purging
• Design: Packless diaphragm
• Material: Forged brass

✅ Key Features

• Designed for precise refrigerant charging and purging
• Globe-style body for smooth, controlled flow
• Positive shut-off with heat-stabilized nylon seat ring
• Hermetic seal between bonnet and body
• Bi-directional flow capability
• Suitable for vacuum applications

📊 Performance

• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
