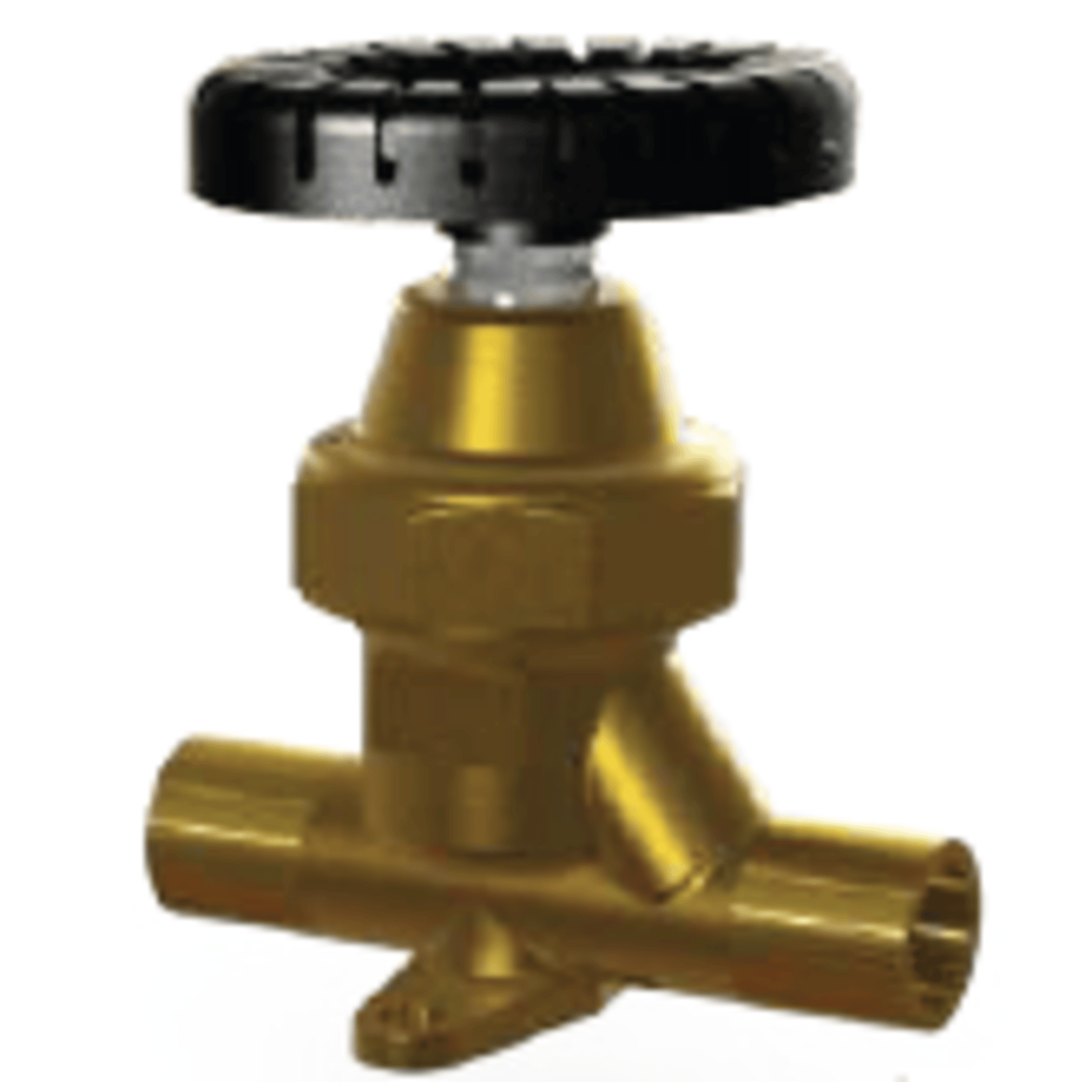

6234N - Henry - 5/8 ODS X 5/8 FL - Brass Globe Charging and Purging Valves

The Henry 6234N is a brass globe charging and purging valve, designed for use in refrigeration and HVAC systems where controlled charging or purging of refrigerant is required. Here are the key specifications:

🔧 Henry 6234N Specifications

• Model: 6234N
• Connection Size: 5/8" ODS (solder) x 5/8" FL (flare)
• Valve Type: Globe charging and purging
• Design: Packless diaphragm
• Material: Forged brass

✅ Key Features

• Designed for charging and purging refrigerant lines
• Globe-style body for smooth flow and minimal pressure drop
• Positive shut-off with heat-stabilized nylon seat ring
• Hermetic seal between bonnet and body
• Bi-directional flow capability
• Suitable for vacuum applications

📊 Performance

• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
