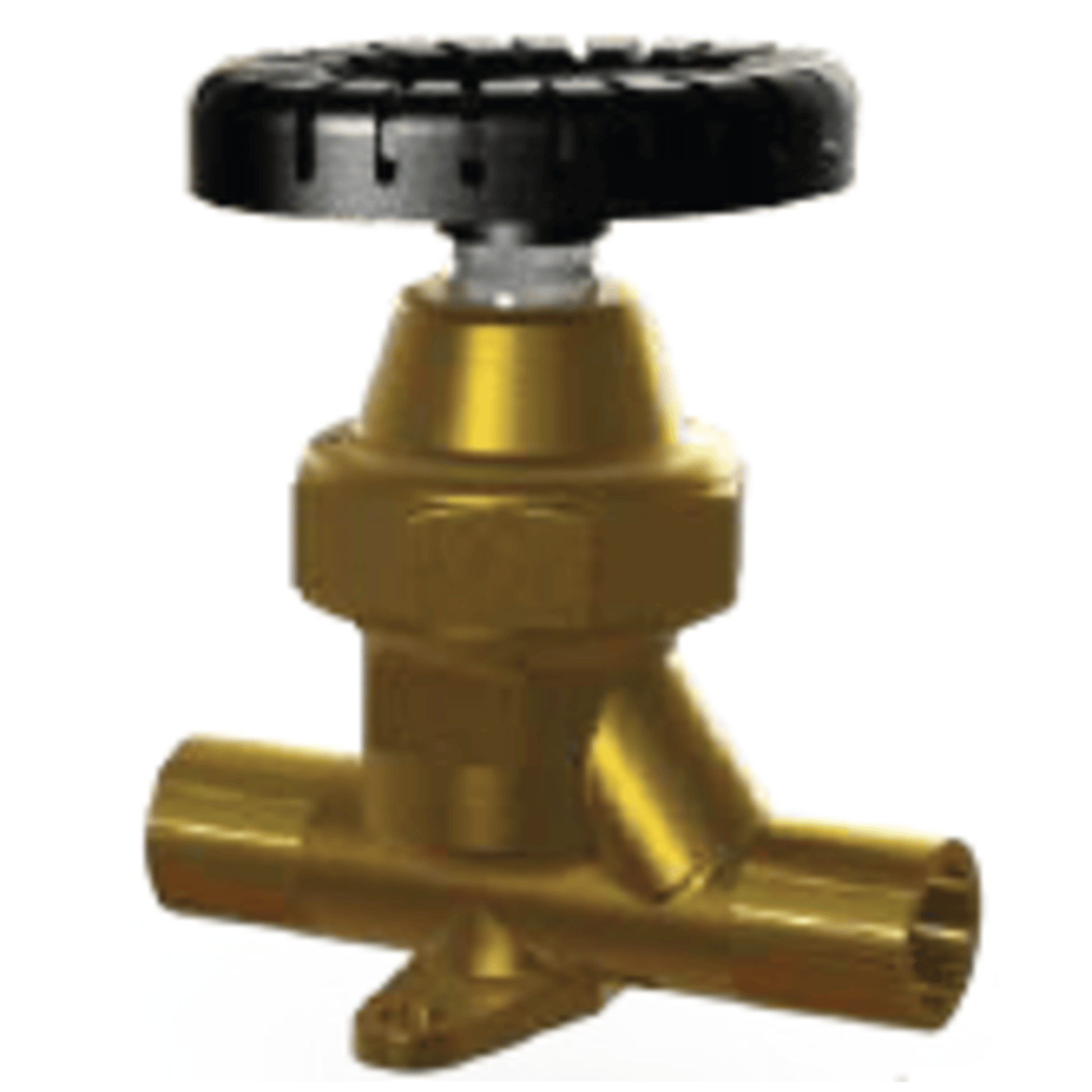

6261N - Henry - 1/4 ODS in - 6.35mm - Brass Globe Shut-Off Valves, Standard

The Henry 6261N is the smallest model in the 6260N series of brass globe shut-off valves, designed for compact refrigeration and HVAC systems. Here are the detailed specifications:

🔧 Henry 6261N Specifications

• Model: 6261N
• Connection Size: 1/4" ODS (Outside Diameter Solder)
• Metric Equivalent: 6.35 mm
• Valve Type: Globe shut-off
• Design: Packless diaphragm
• Material: Forged brass

✅ Key Features

• Globe-style body for smooth flow and minimal pressure drop
• Positive shut-off with heat-stabilized nylon seat ring
• Hermetic seal between bonnet and body
• Bi-directional flow capability
• Suitable for vacuum applications

📊 Performance

• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
