6265N - Henry - 5/8 ODS in - 15.875mm - Brass Globe Shut-Off Valves, Standard

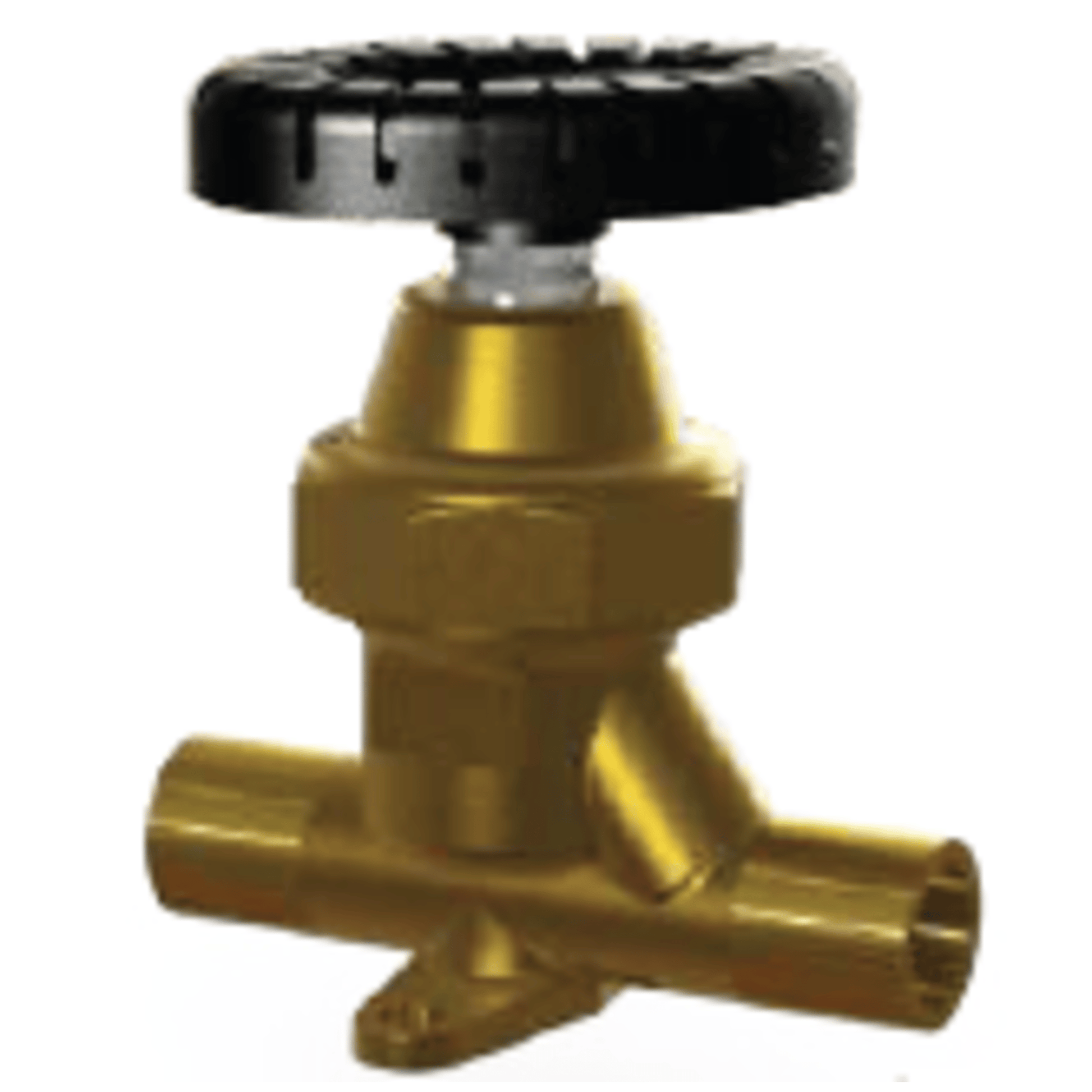

The Henry 6265N is a brass globe shut-off valve designed for manual shut-off in refrigeration and HVAC systems. Here are the detailed specifications:

🔧 Henry 6265N Specifications

• Model: 6265N
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 15.875 mm
• Valve Type: Globe shut-off
• Design: Packless diaphragm
• Material: Forged brass

✅ Key Features

• Globe-style body for smooth flow and minimal pressure drop
• Positive shut-off with heat-stabilized nylon seat ring
• Hermetic seal between bonnet and body
• Bi-directional flow capability
• Suitable for vacuum applications

📊 Performance

• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
