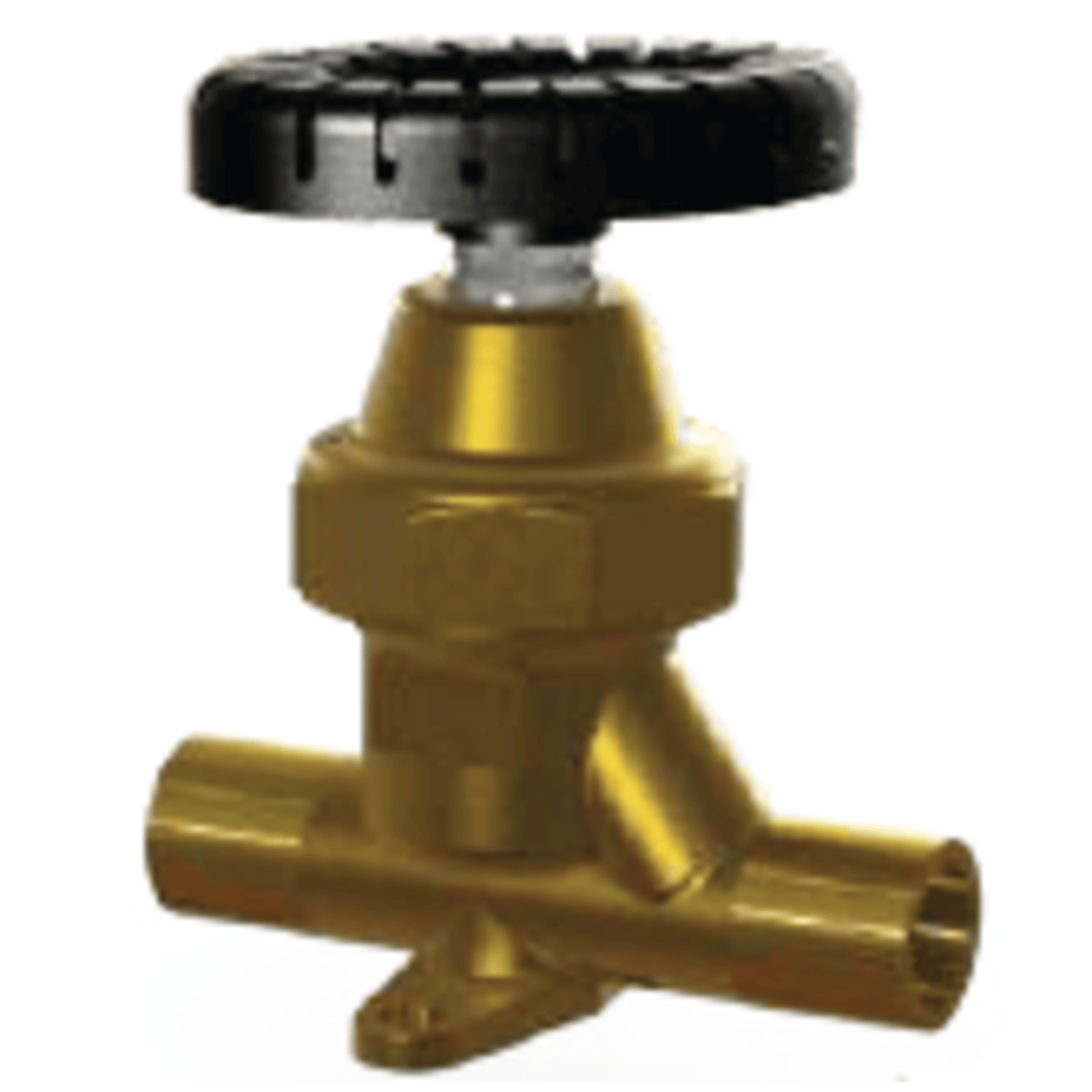

6268N - Henry - 1-1/8 ODS in - 28.575mm - Brass Globe Shut-Off Valves, Standard

The Henry 6268N is a brass globe shut-off valve designed for use in refrigeration and HVAC systems where reliable manual shut-off is required. Here are the key specifications:

🔧 Henry 6268N Specifications

• Model: 6268N
• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 28.575 mm
• Valve Type: Globe shut-off
• Design: Packless diaphragm
• Material: Forged brass
• Features:
  • Globe-style body for smooth flow and minimal pressure drop
  • Positive shut-off with a heat-stabilized nylon seat ring
  • Hermetic seal between bonnet and body
  • Suitable for vacuum applications
  • Bi-directional flow capability
• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
