6297N - Henry - 7/8 OD - Brass Globe Hand Expansion Valves, Standard
SKU HEN-6297N
Original price
$1,332.60
-
Original price
$1,332.60
Original price
$1,332.60
$1,332.60
$1,332.60
-
$1,332.60
Current price
$1,332.60
Availability:
Call for Availability

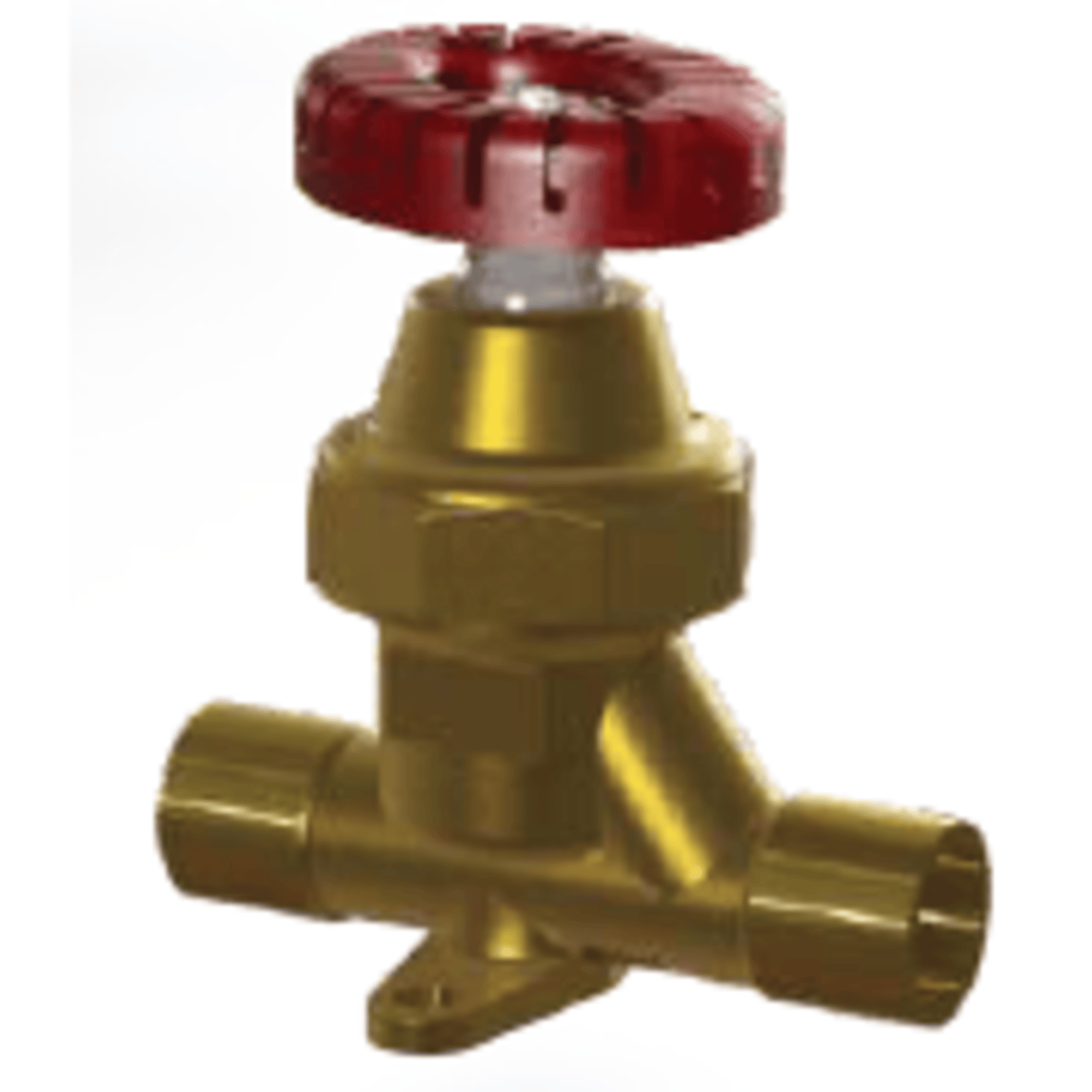

The Henry 6297N is a brass globe hand expansion valve used for manual regulation of refrigerant flow in HVAC and refrigeration systems. Here are the key specifications:
🔧 Henry 6297N Specifications
- Model: 6297N
- Connection Size: 7/8" ODS (Outside Diameter Solder)
- Metric Equivalent: 22.225 mm
- Valve Type: Globe hand expansion
- Design: Packless diaphragm
- Material: Forged brass
-
Features:
- Globe-style body for smooth flow and precise control
- Positive shut-off with heat-stabilized nylon seat ring
- Hermetic seal between bonnet and body
- Bi-directional flow capability
- Suitable for vacuum applications
- Maximum Working Pressure: 500 PSI
- Temperature Range: -20°F to 275°F (-29°C to 135°C)
- Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
