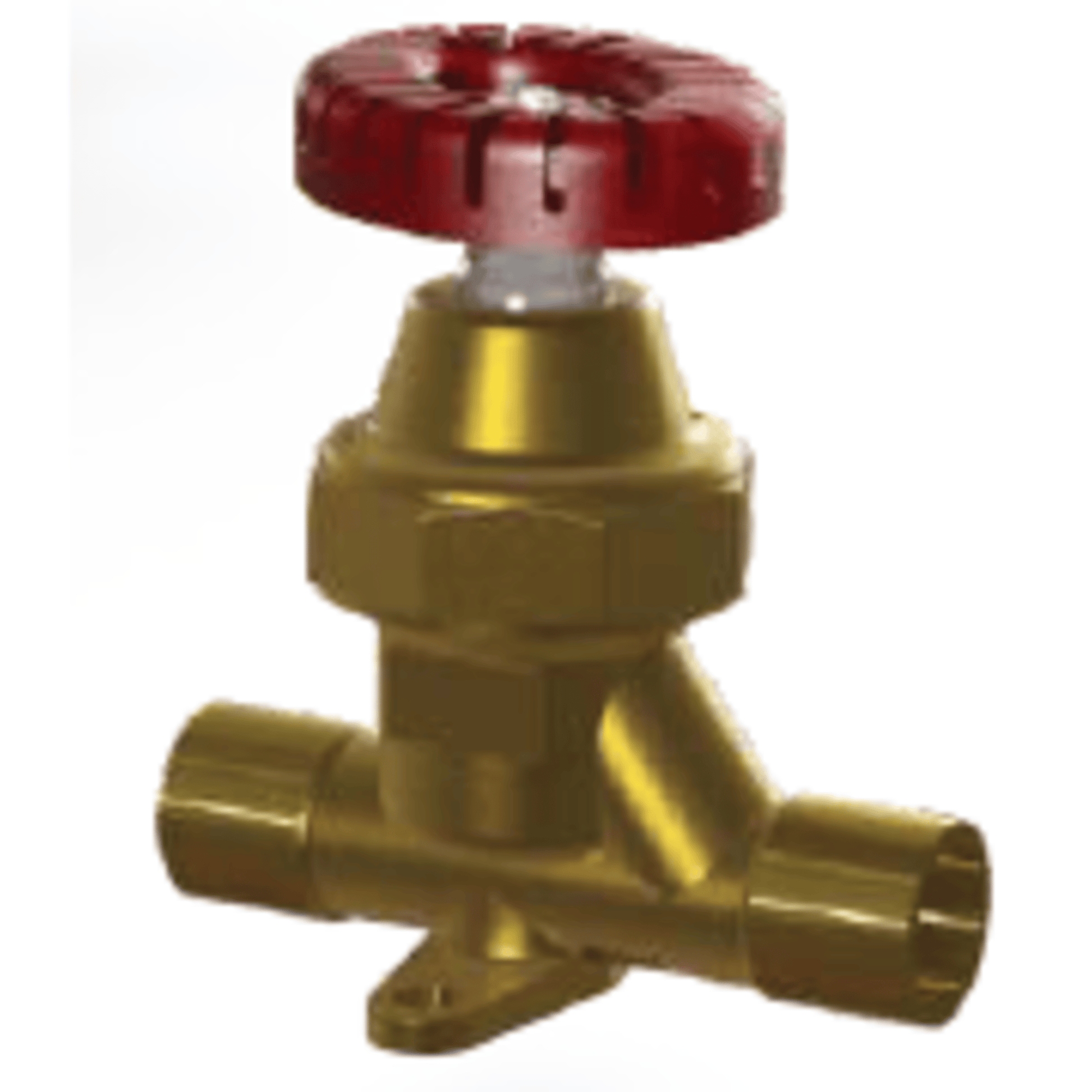

6298N - Henry - 1-1/8 ODS in - 28.575mm - Brass Globe Hand Expansion Valves, Standard

The Henry 6298N is a brass globe hand expansion valve designed for manual flow regulation in refrigeration and HVAC systems. Here are the detailed specifications:

🔧 Henry 6298N Specifications

• Model: 6298N
• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 28.575 mm
• Valve Type: Globe hand expansion
• Design: Packless diaphragm
• Material: Forged brass
• Features:
  • Angled body for compact design and low pressure drop
  • Vented seal cap
  • Non-rising stem
  • Flow direction arrow on valve body
  • Premium neoprene O-ring seals
• Maximum Working Pressure: 500 PSI (34.5 bar)
• Operating Temperature Range: -40°F to +248°F (-40°C to +120°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and other refrigerants where materials are compatible
