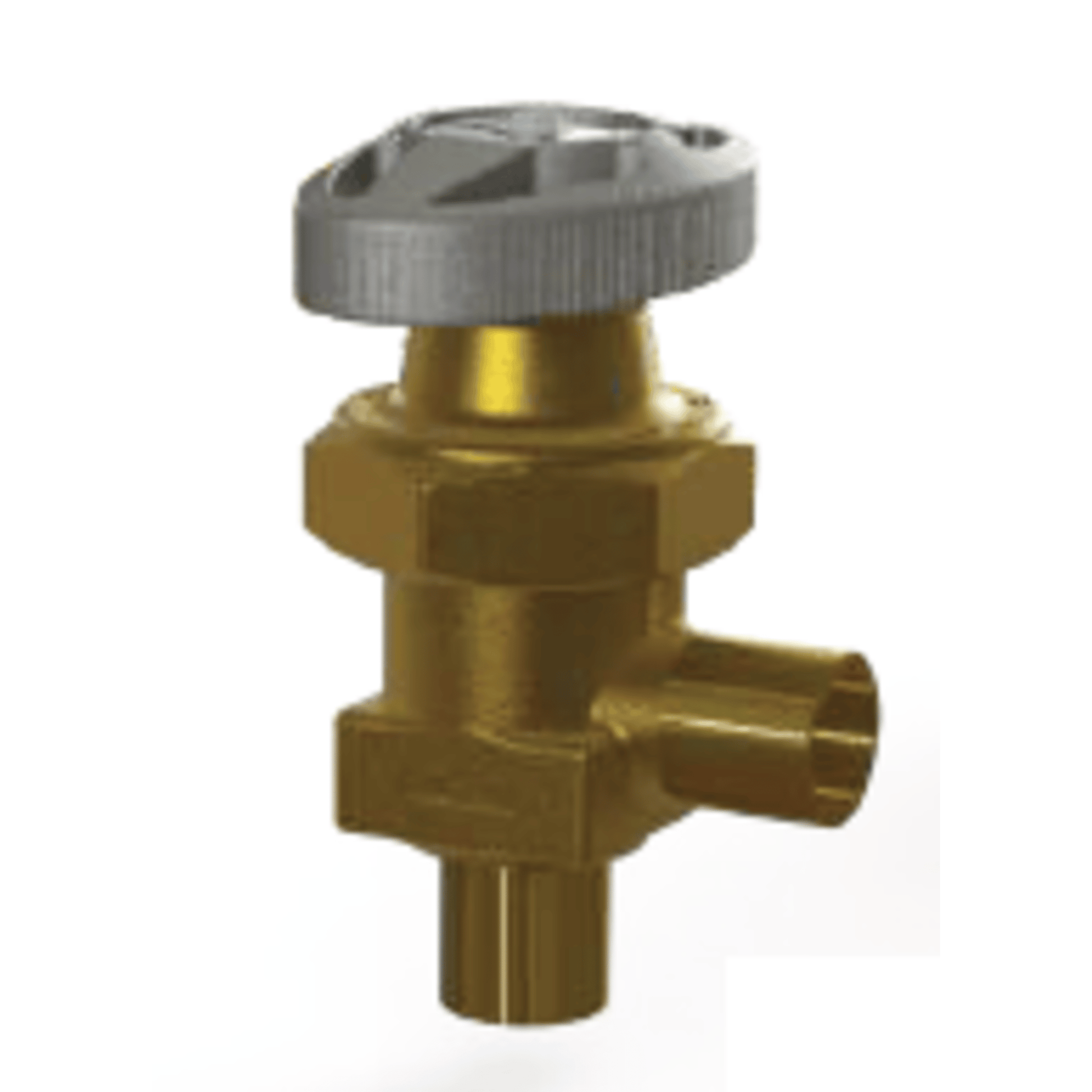

6471N - Henry - 1/4 ODS in - 6.35mm - Brass Angle Shut-Off Valves, Standard

The Henry 6471N is the smallest in the 6400N series of brass angle shut-off valves, designed for compact refrigeration and HVAC systems. Here are its key specifications:

🔧 Henry 6471N Specifications

• Model: 6471N
• Connection Size: 1/4" ODS (Outside Diameter Solder)
• Metric Equivalent: 6.35 mm
• Valve Type: Angle shut-off
• Design: Packless diaphragm
• Material: Forged brass
• Connection Type: ODS x ODS (sweat connections)
• Maximum Operating Pressure:
  • Up to 350 PSI (non-directional)
  • Up to 500 PSI (with directional flow: inlet under valve seat)
• Maximum Temperature Rating: 275°F (135°C)
• Overall Height: 3.13 inches
• Weight: Approximately 0.85 lbs.
