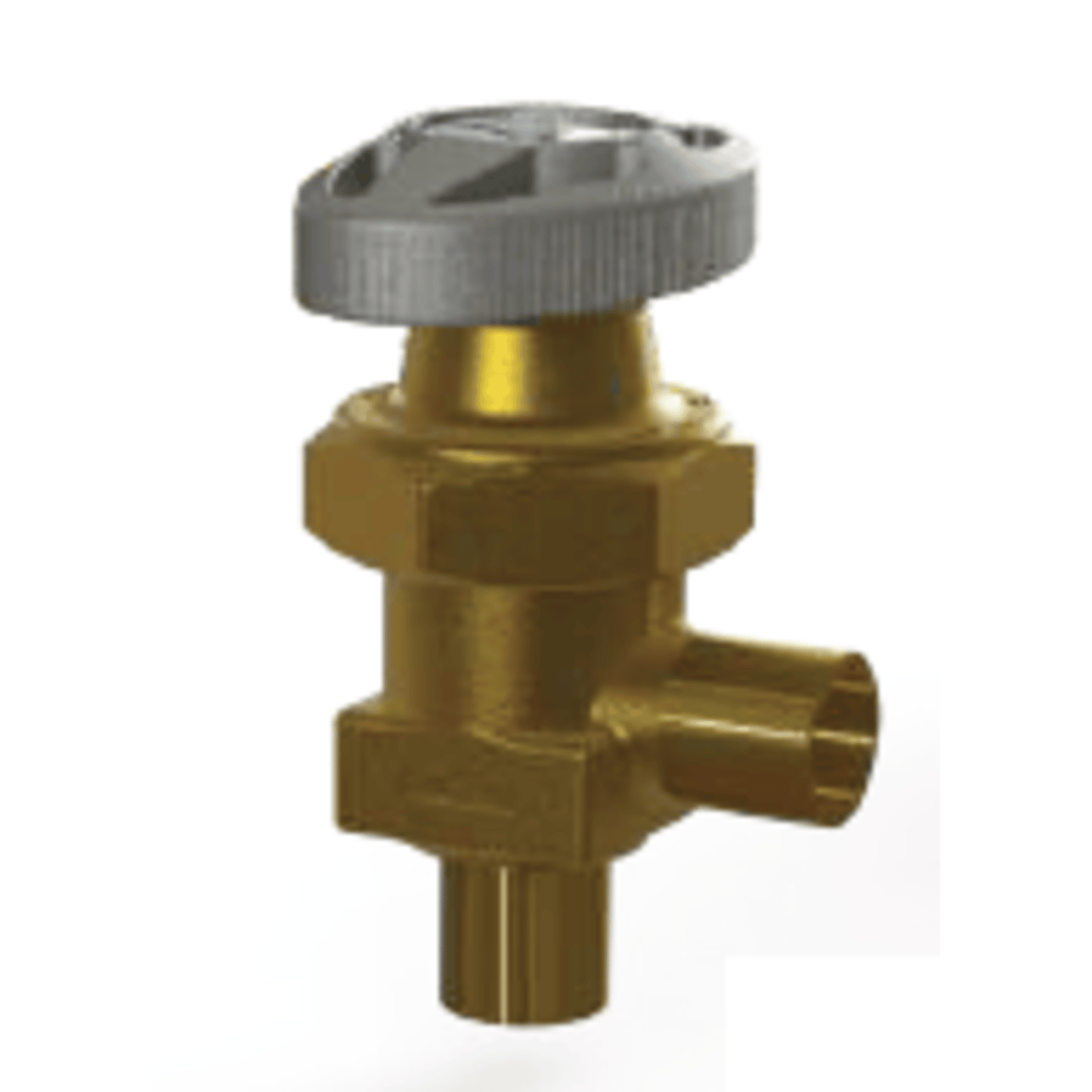

6473N - Henry - 3/8 ODS in - 9.525mm - Brass Angle Shut-Off Valves, Standard

The Henry 6473N is a brass angle shut-off valve designed for standard refrigeration and HVAC applications. Here are its key specifications:

🔧 Henry 6473N Specifications

• Model: 6473N
• Connection Size: 3/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 9.525 mm
• Valve Type: Angle shut-off
• Design: Packless diaphragm
• Material: Forged brass
• Connection Type: ODS x ODS (sweat connections)
• Maximum Operating Pressure:
  • Up to 350 PSI (non-directional)
  • Up to 500 PSI (if flow is directed with inlet under the valve seat)
• Maximum Temperature Rating: 275°F (135°C)
• Overall Height: 3.25 inches
• Weight: Approximately 0.93 lbs.
