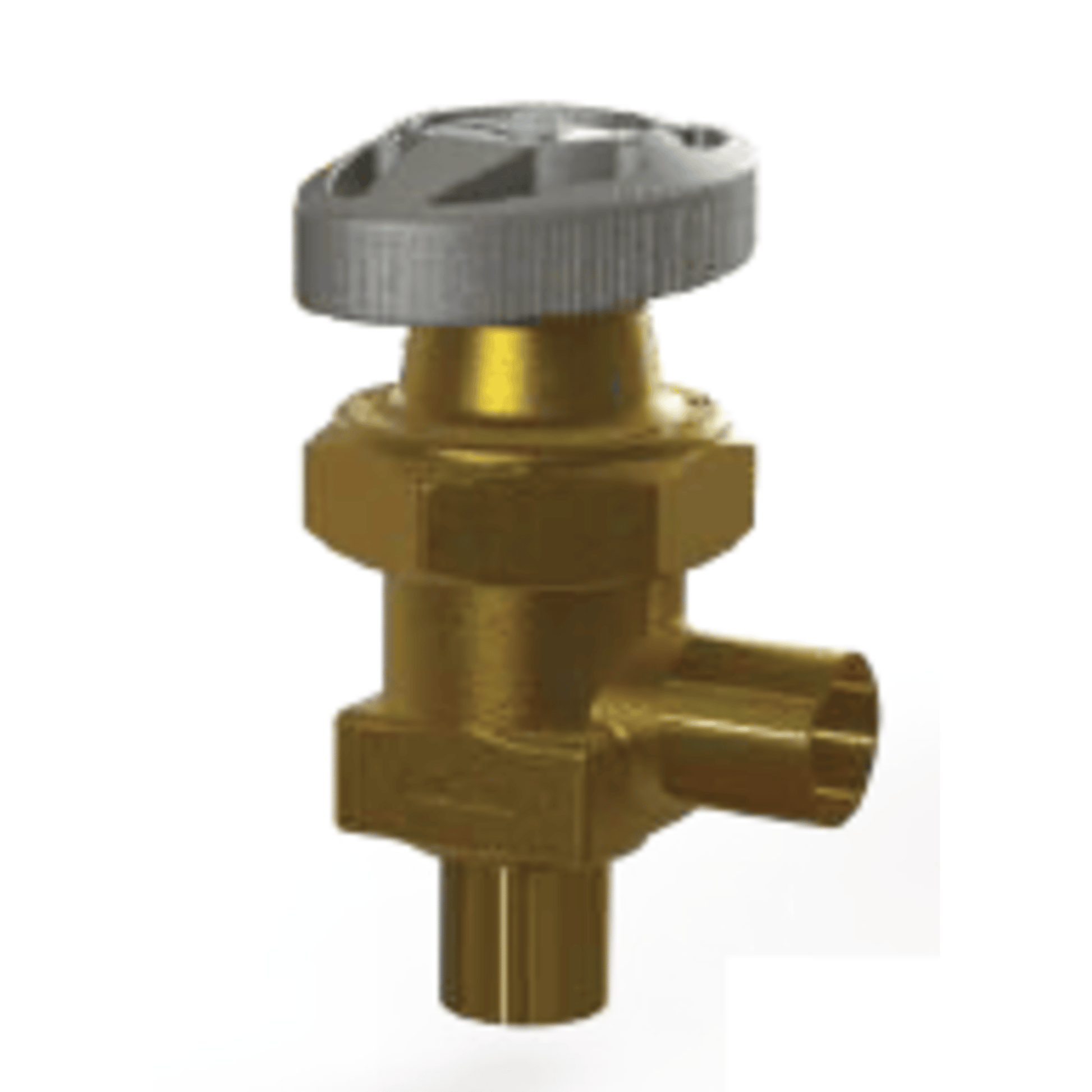

6474N - Henry - 1/2 ODS in - 12.7mm - Brass Angle Shut-Off Valves, Standard

The Henry 6474N is a brass angle shut-off valve designed for use in refrigeration and HVAC systems. Here are the detailed specifications:

🔧 Henry 6474N Specifications

• Model: 6474N
• Connection Size: 1/2" ODS (Outside Diameter Solder)
• Metric Equivalent: 12.7 mm
• Valve Type: Angle shut-off
• Design: Packless diaphragm
• Material: Forged brass
• Connection Type: ODS x ODS (sweat connections)
• Maximum Operating Pressure:
  • Up to 350 PSI (non-directional)
  • Up to 500 PSI (if flow is directed with inlet under the valve seat)
• Maximum Temperature Rating: 275°F (135°C)
• Overall Height: 3.50 inches
• Weight: Approximately 1.07 lbs.
