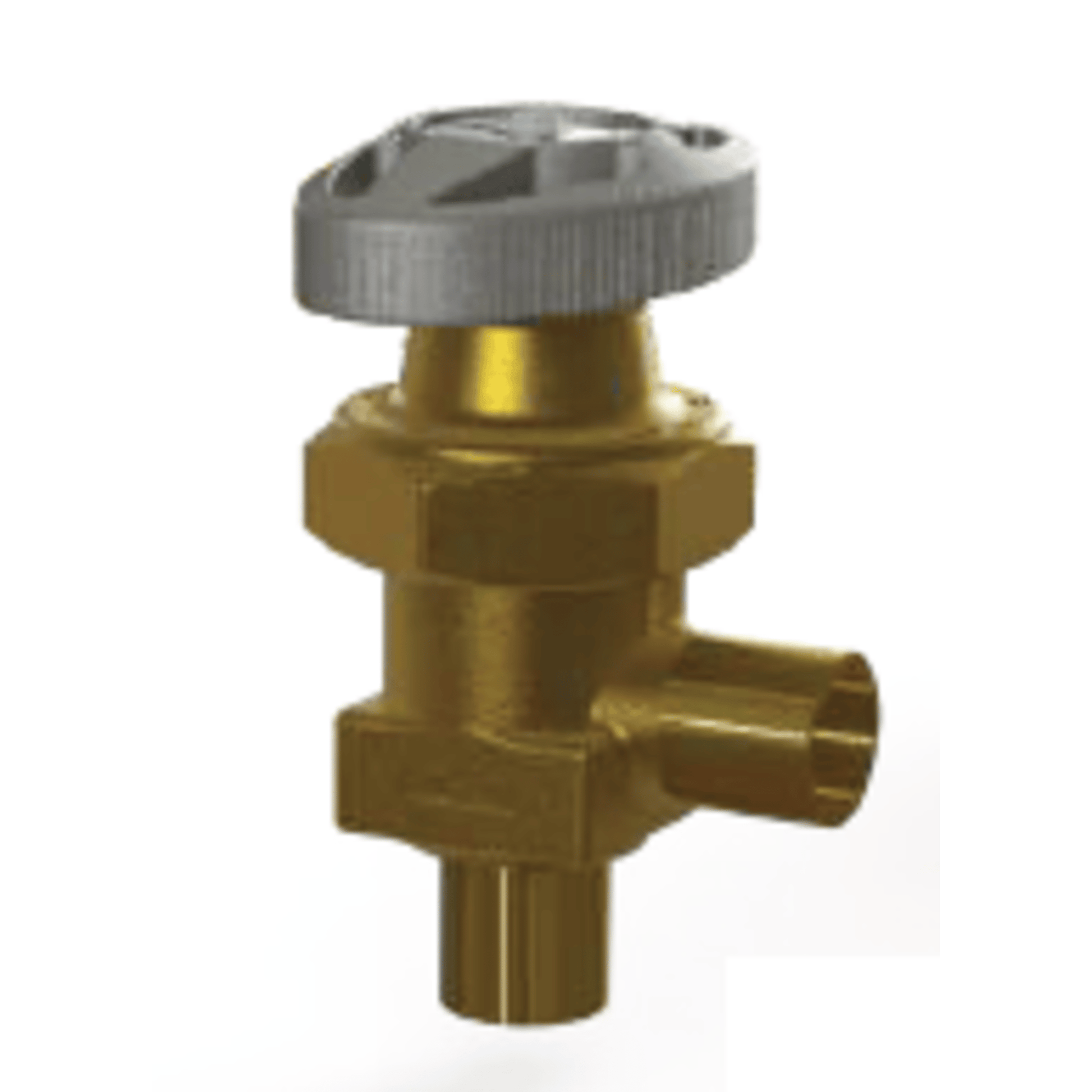

6475N - Henry - 5/8 ODS in - 15.875mm - Brass Angle Shut-Off Valves, Standard

The Henry 6475N is a brass angle shut-off valve designed for standard refrigeration and HVAC applications. Here are the detailed specifications:

🔧 Henry 6475N Specifications

• Model: 6475N
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 15.875 mm
• Valve Type: Angle shut-off
• Design: Packless diaphragm
• Material: Forged brass
• Connection Type: ODS x ODS (sweat connections)
• Maximum Operating Pressure:
  • Up to 350 PSI (non-directional)
  • Up to 500 PSI (directional flow required: inlet under valve seat)
• Maximum Temperature Rating: 275°F (135°C)
• Overall Height: 3.81 inches
• Weight: Approximately 1.19 lbs.
