6478N - Henry - 1-1/8 ODS in - 28.575mm - Brass Angle Shut-Off Valves, Standard

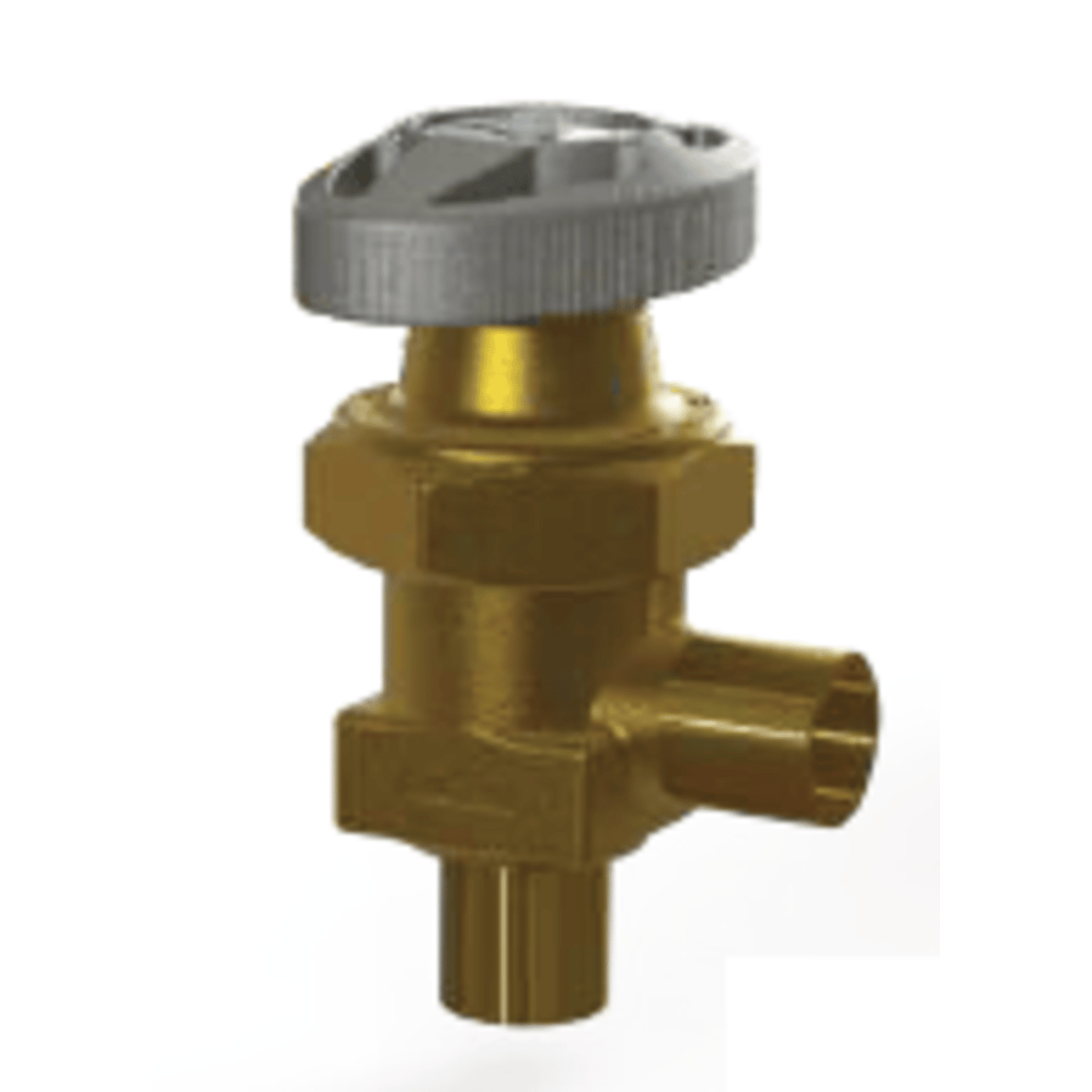

The Henry 6478N is a brass angle shut-off valve designed for refrigeration and HVAC applications. Here are the key specifications:

🔧 Henry 6478N Specifications

• Model: 6478N
• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Port Diameter: 28.575 mm
• Valve Type: Angle shut-off
• Design: Packless diaphragm
• Material: Brass (copper alloy)
• Connection Type: ODS x ODS (sweat connections)
• Maximum Operating Pressure: 300 PSI
• Maximum Operating Temperature: 275°F (135°C)
• Bonnet Type: Inside screw, integral bonnet
• Application: Flow control in refrigeration systems

This valve is commonly used in systems where a reliable, leak-free shut-off is required without the need for packing maintenance.
