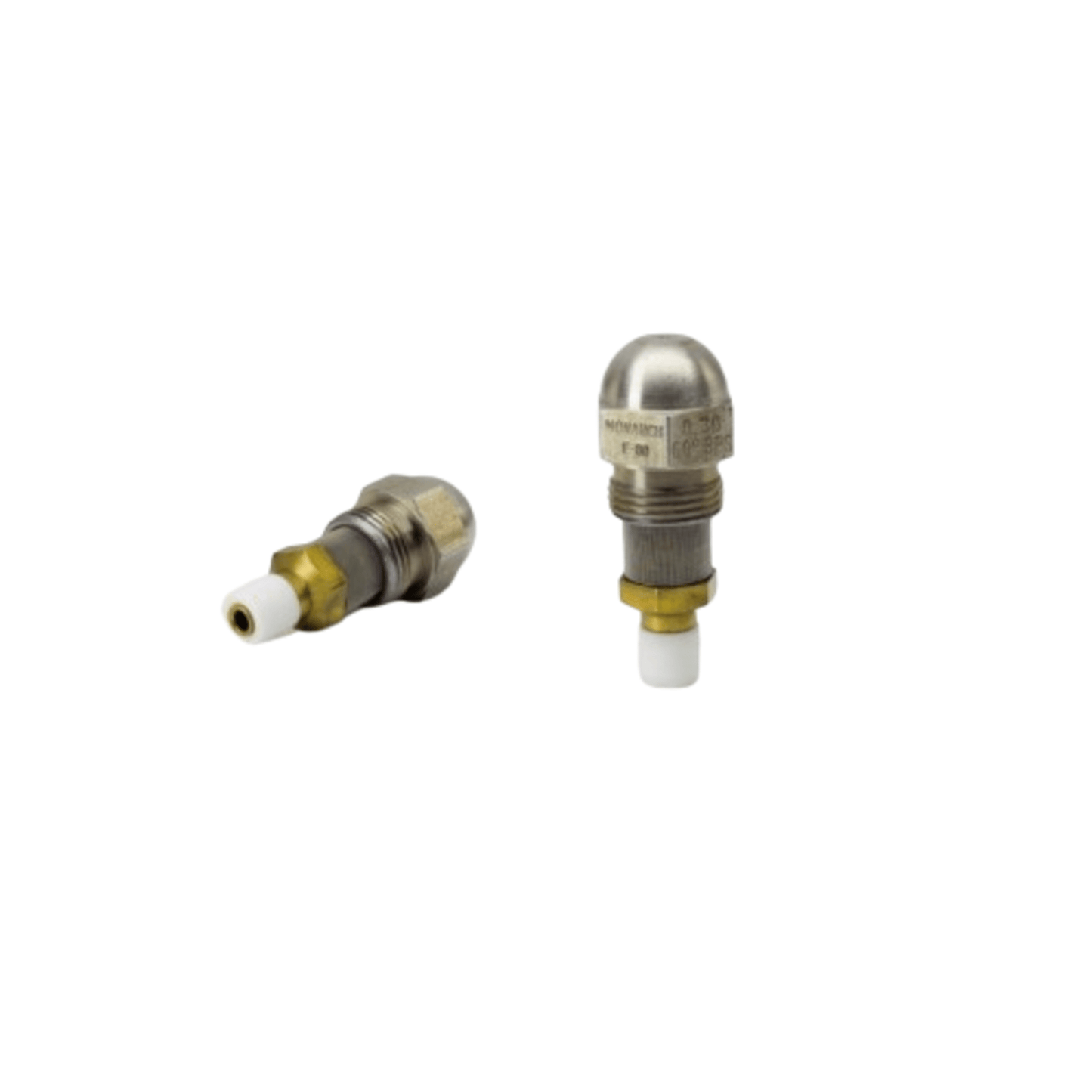

Monarch Oil Nozzle 65.00 80 BPS

Here’s a detailed overview of the Monarch 65.00 80 BPS Oil Nozzle:

?? Technical Specifications

• Model: 65.00 80 BPS
• Flow Rate: 65.00 GPH (Gallons Per Hour) at 100 PSI
• Spray Angle: 80°
• Spray Pattern: BPS Series – Variable orifice via bypass
• Material:
  • Tip & disc: High-chrome stainless steel
  • Strainer: Monel mesh (typically 120 mesh)
  • Body & fittings: Brass
  • O-ring: Viton

?? BPS (By-Passing) Functionality

• Variable Flow Control: Achieved by bypassing fluid from the swirl chamber.
• Flow Regulation: Controlled via pressure in the bypass line.
• Spray Angle Adjustment: Spray angle may widen by 5°–10° when bypass is fully open.
• Operating Pressure: Standard at 100 PSI; suitable for oils up to 70 SSU (?13 cSt). Can be used at pressures up to 250 PSI
