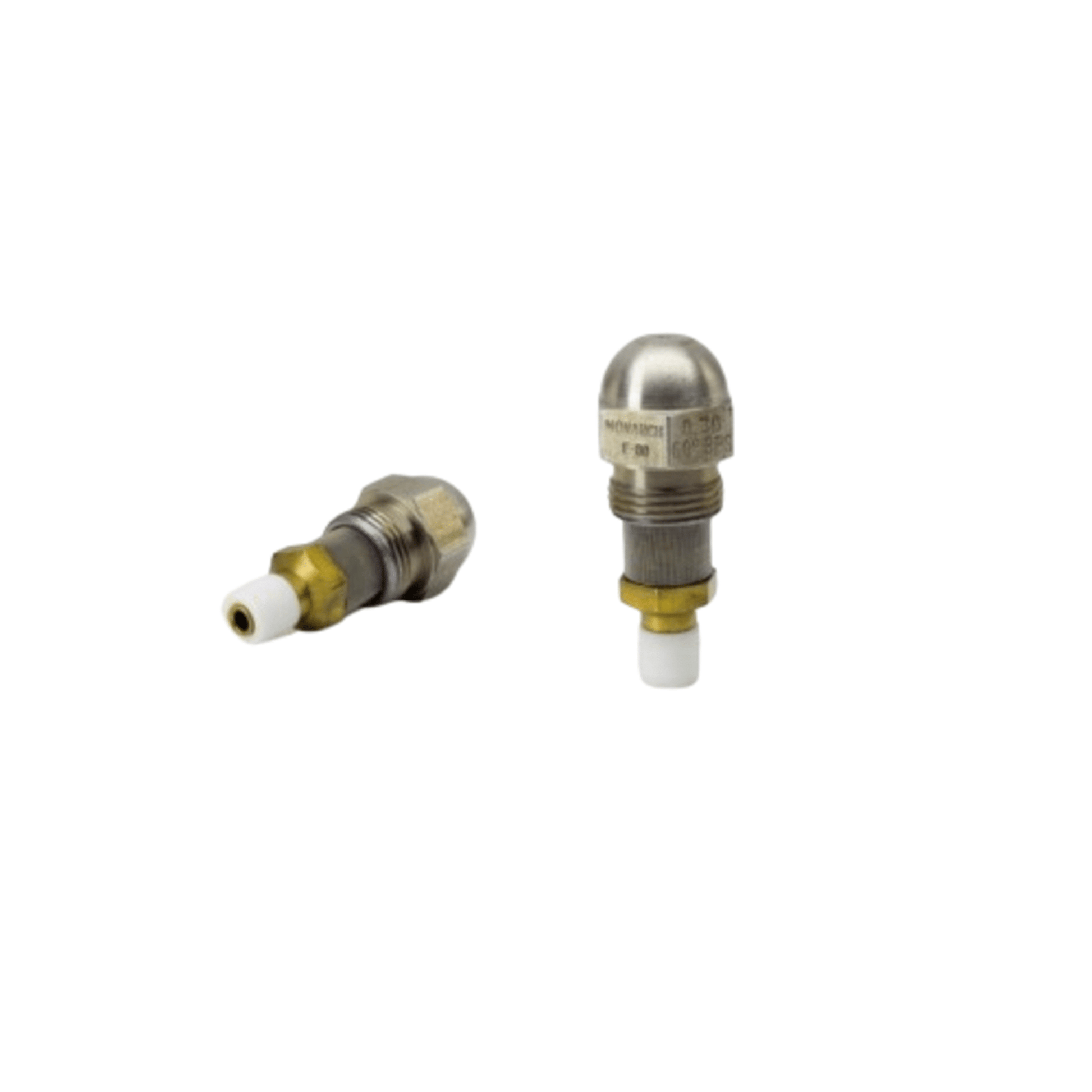

8.00 45 BPS - Monarch - Oil Nozzle

Here are the details for the 8.00 45 BPS - Monarch Oil Nozzle:

🔧 Product Overview

• Model: 8.00 45 BPS

• Brand: Monarch MFG Works LLC

• Series: BPS (By-Passing)

• Flow Rate: 8.00 GPH

• Spray Angle: 45°

• Spray Pattern: Semi-solid cone, variable orifice

• Design Features:

  • Flow rate is regulated by controlling the by-pass line pressure
  • Spray angle widens by 5°–10° when the by-pass is fully open
  • Rated for 100 psi operation on #2 fuel oil
  • Can operate up to 250 psi and handle oils up to 70 S.S.U. viscosity
  • Special testing available for 300+ psi operation

• Materials:

  • Tip & disc: High-chrome stainless steel
  • Strainer support: Brass
  • Strainer screen: 120 mesh Monel
  • O-ring: Viton
