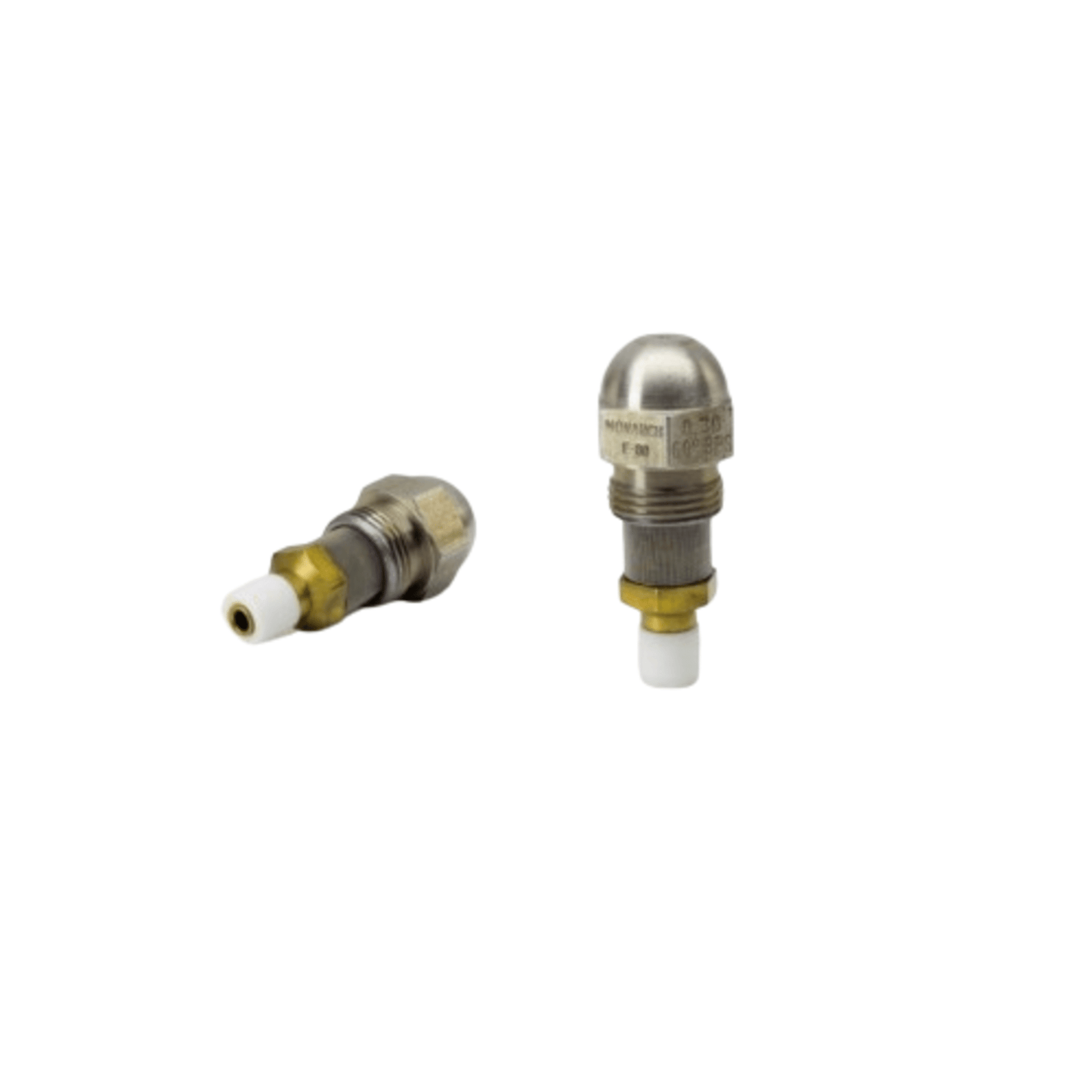

8.00 60 BPS - Monarch - Oil Nozzle

Here’s a detailed overview of the 8.00 60 BPS - Monarch Oil Nozzle:

🔧 Product Specifications

• Model: 8.00 60 BPS
• Brand: Monarch MFG Works LLC
• Series: BPS (By-Passing)
• Flow Rate: 8.00 GPH
• Spray Angle: 60°
• Spray Pattern: Semi-solid cone
• Design: Variable orifice flow via by-pass line pressure control
• Materials:
  • Tip & disc: High-chrome stainless steel
  • Strainer support: Brass
  • Strainer screen: Monel (120 mesh)
  • O-ring: Viton
• Operating Pressure: Rated at 100 psi on #2 fuel oil
• Spray Angle Behavior: Widens by 5°–10° when by-pass is fully open
• Max Pressure: Can operate up to 250 psi; suitable for oils up to 70 S.S.U. viscosity
