9297 - Henry - 1/8 MPT x 1/4 FL - POSITIVE OIL EXCHANGE VALVES

The Henry 9297 is a Positive Oil Exchange Valve designed for efficient servicing of compressor crankcase oil in refrigeration systems. Here are the detailed specifications:

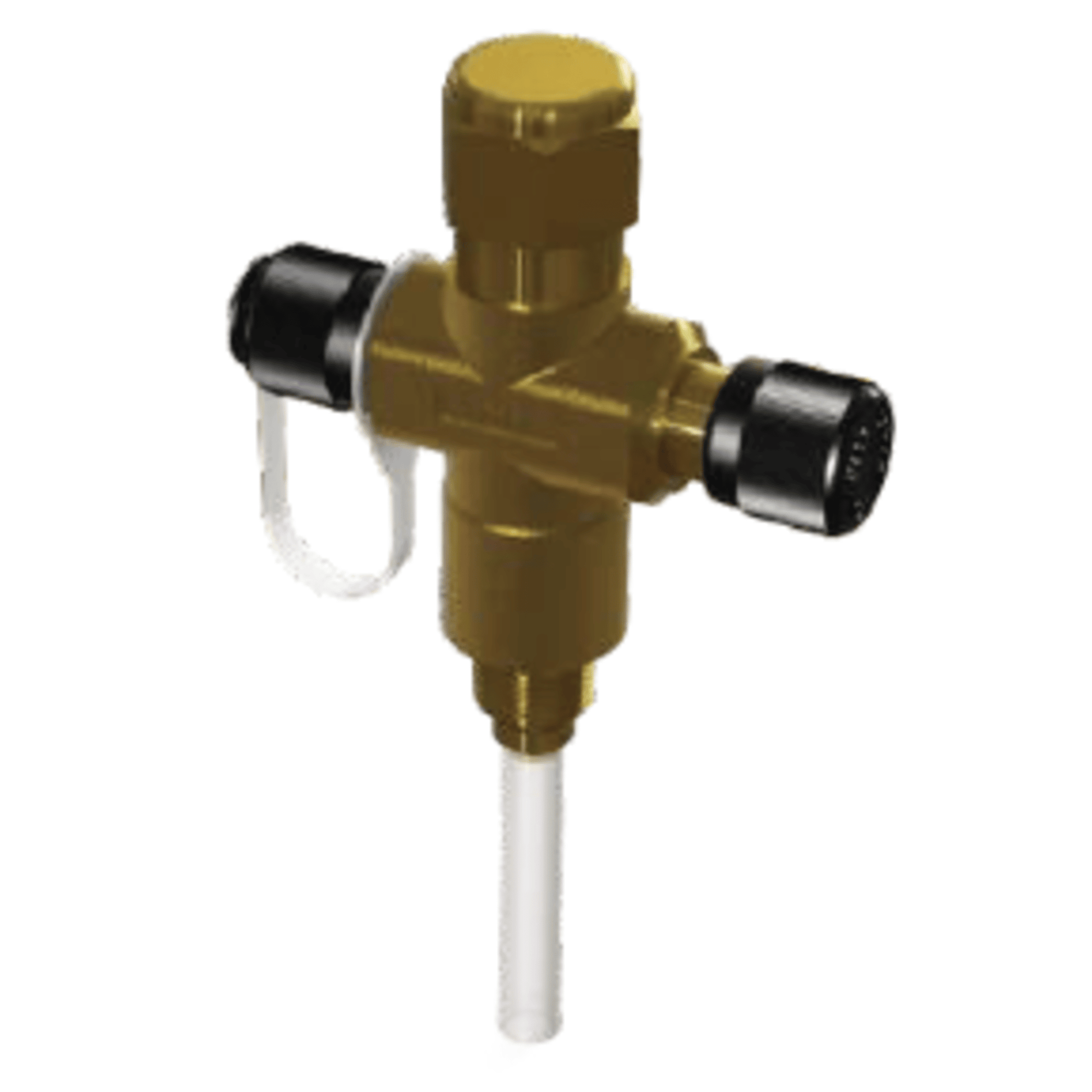

Henry 9297 Positive Oil Exchange Valve

• Model: 9297
• Inlet Connection: 1/8" MPT (Male Pipe Thread)
• Outlet Connection: 1/4" FL (SAE Flare)
• Body Material: Brass
• Stem: Plated steel
• Design Features:
  • Full port valve for fast oil charging and draining
  • Pressure gauge connection with Schrader valve
  • Packless design for reduced leak risk
  • Designed to be permanently fitted to the compressor for future servicing
• Applications:
  • Primarily used for removal and replacement of compressor crankcase oil
  • Ideal for semi-hermetic compressors
• Refrigerant Compatibility:
  • Suitable for HCFC and HFC refrigerants and their associated oils
• Operating Conditions:
  • Max Working Pressure: 34.5 bar (500 PSI)
  • Temperature Range: -29°C to +120°C (-20°F to +248°F)
