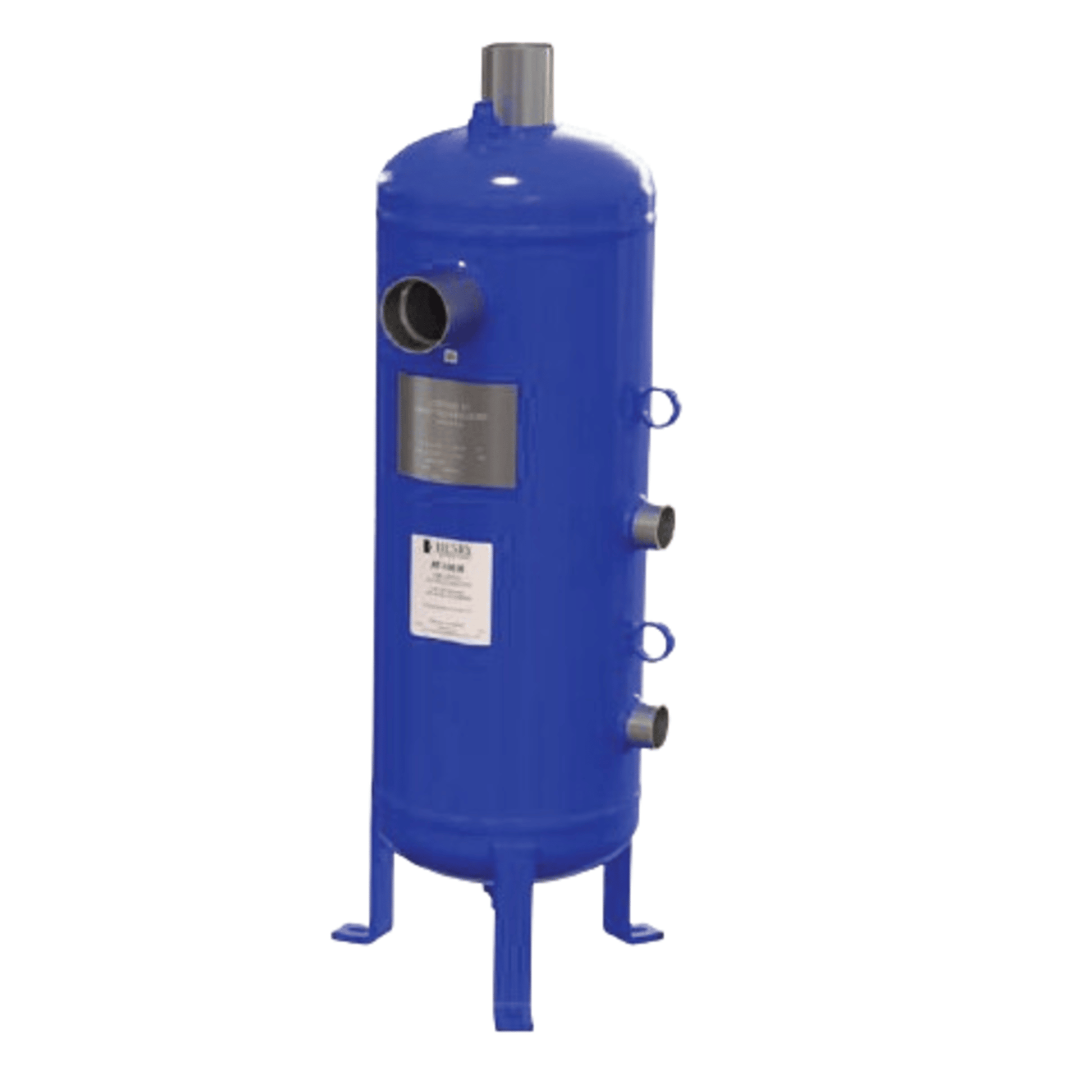

AF-08030 - Henry - 2-5/8 ODS - 66.675mm - Suction Line Accumulator

The Henry AF-08030 is a vertical suction line accumulator designed to protect compressors in refrigeration and air conditioning systems. Here's a detailed overview based on the latest available specifications:

🔧 Technical Specifications

• Model: AF-08030
• Connection Size: 2-5/8" ODS (66.675 mm)
• Mounting Orientation: Vertical
• Shell Diameter: 8.63 inches
• Length: Approximately 37 inches
• Weight: Around 75 lbs
• Material: Heavy-duty steel
• Finish: Powder-coated for corrosion resistance
• Max Working Pressure: 400 PSI
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Refrigerant Holding Capacity:
  • R12: ~55 lbs
  • R22: ~55 lbs
  • R502: ~58 lbs

⚙️ Functional Features

• Primary Function:
  • Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
  • Helps maintain proper crankcase oil levels and system efficiency.
• Controlled Return: Ensures only vapor returns to the compressor.
• Design Features:
  • Screen-protected orifice
  • Optional heat exchanger models available
  • Mounting legs included
  • May include a 1” NPT port for level switch installation
