AF-08036 - Henry - 2-5/8 ODS - 66.675mm - Suction Line Accumulator

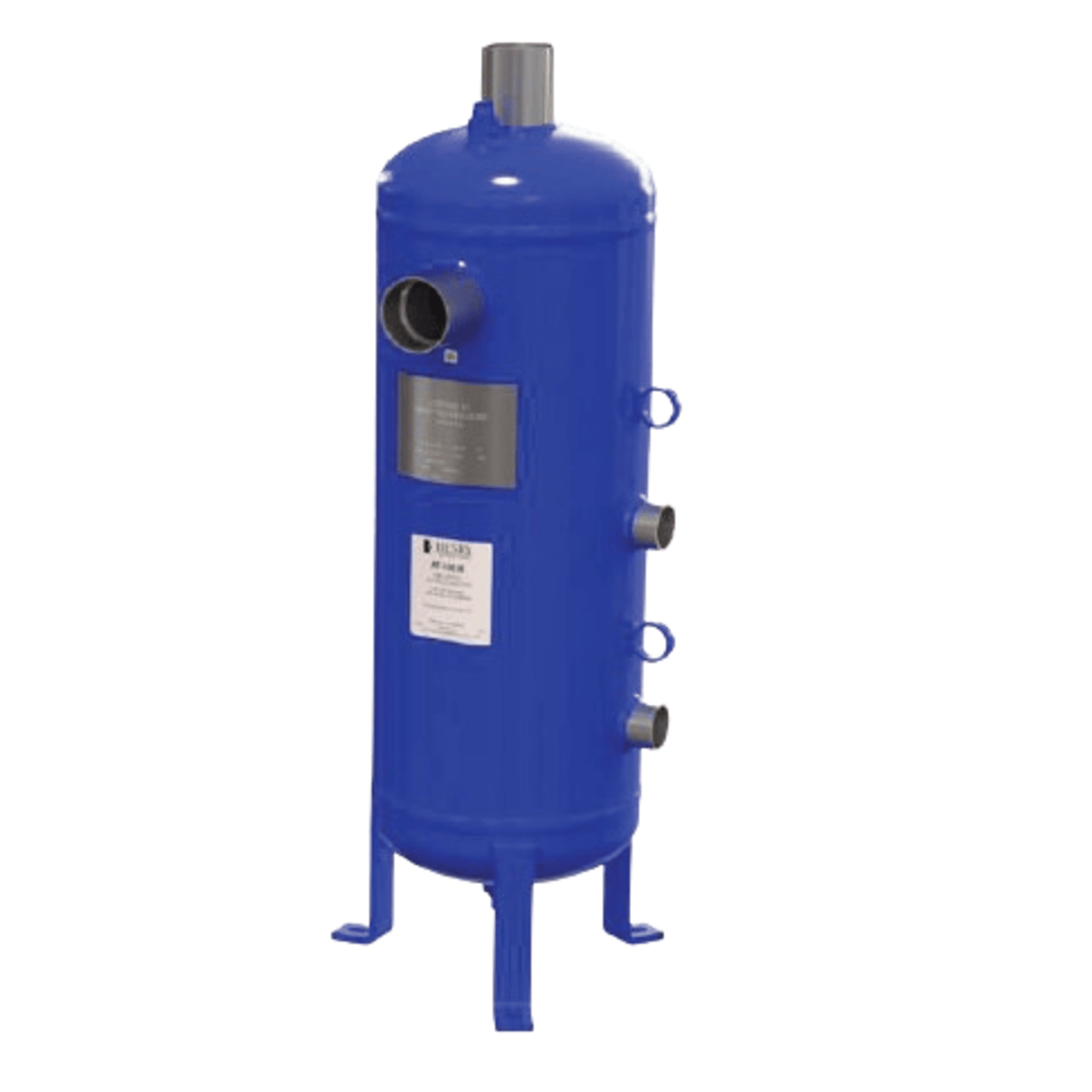

The Henry AF-08036 is a vertical industrial suction line accumulator designed to protect compressors in refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications and features:

🔧 Technical Specifications

• Model: AF-08036
• Connection Size: 2-5/8" ODS (66.675 mm)
• Mounting Orientation: Vertical with mounting legs
• Boil-Out Connection: 1-1/8"
• Maximum Flow Capacity: 70 CFM
• Dimensions:
  • Diameter: 8.63 inches
  • Length: 43 inches
• Weight: 81 lbs
• Shell Material: Steel
• Maximum Working Pressure: 400 PSI
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Refrigerant Holding Capacity:
  • R12: 66 lbs
  • R22: 66 lbs
  • R502: 69 lbs

⚙️ Functional Features

• Primary Function: Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
• Controlled Return: Ensures only vapor returns to the compressor.
• Design Features:
  • Screen-protected orifice
  • Optional heat exchanger models available
  • Compatible with various refrigerants including R12, R22, and R502
