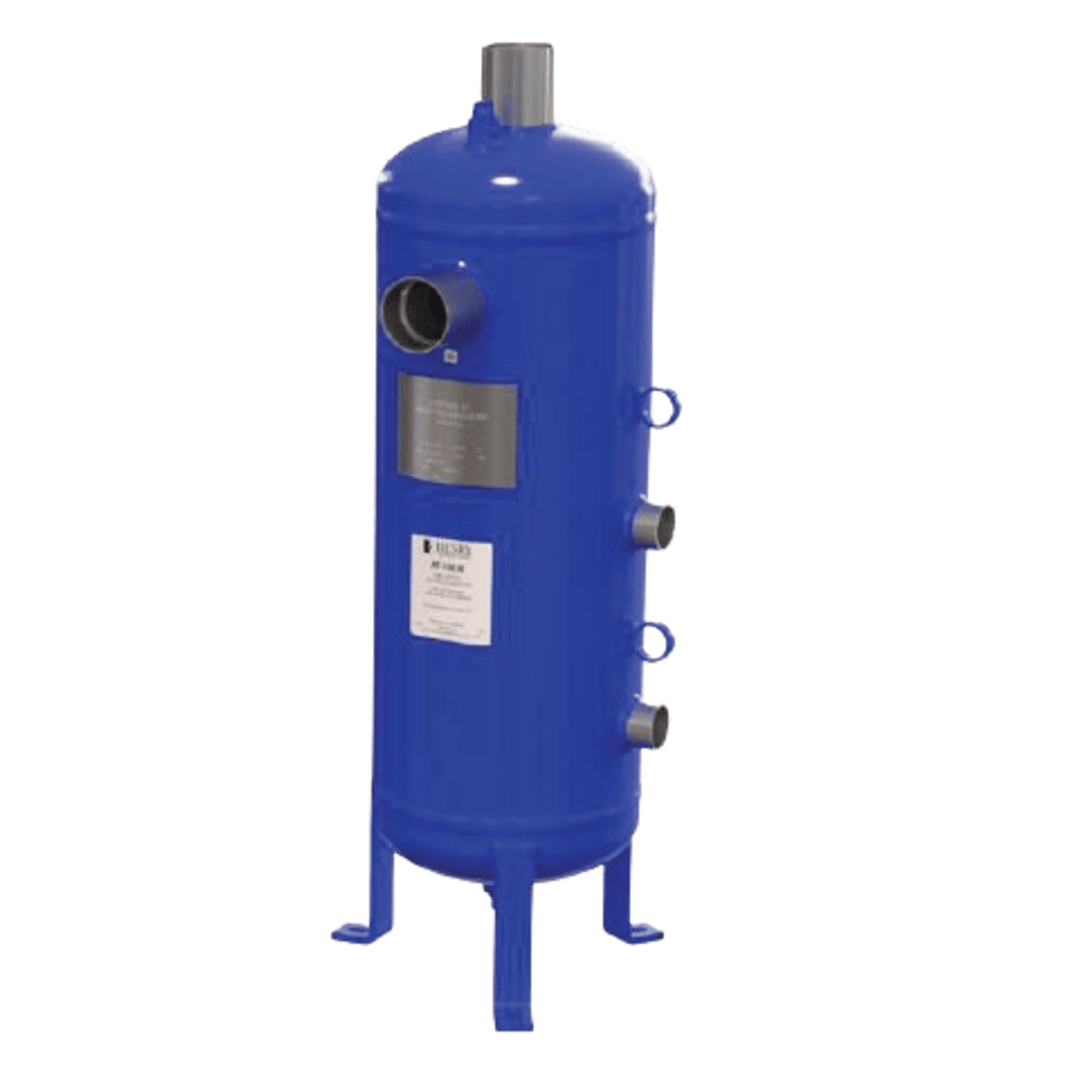

AF-10048 - Henry - 2-5/8 ODS - 66.675mm - Suction Line Accumulator

The Henry AF-10048 is a vertical suction line accumulator designed to protect compressors in refrigeration and air conditioning systems. Here's a detailed overview of its specifications and features:

🔧 Technical Specifications

• Model: AF-10048
• Connection Size: 2-5/8" ODS (66.675 mm)
• Mounting Orientation: Vertical
• Weight: Approximately 159 lbs
• Material: Heavy-duty steel
• Finish: Powder-coated for corrosion resistance
• Refrigerant Compatibility: Suitable for ammonia, HFC, and HCFC refrigerants, and other non-corrosive industrial fluids

⚙️ Functional Features

• Primary Function:
  • Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
  • Helps maintain proper crankcase oil levels and system efficiency.
• Controlled Return: Ensures only vapor returns to the compressor.
• Design Features:
  • ODS copper connections
  • Optional heat exchanger models available
  • Mounting legs included
