AF-12030 - Henry - 3-1/8 ODS - 79.375mm - Suction Line Accumulator

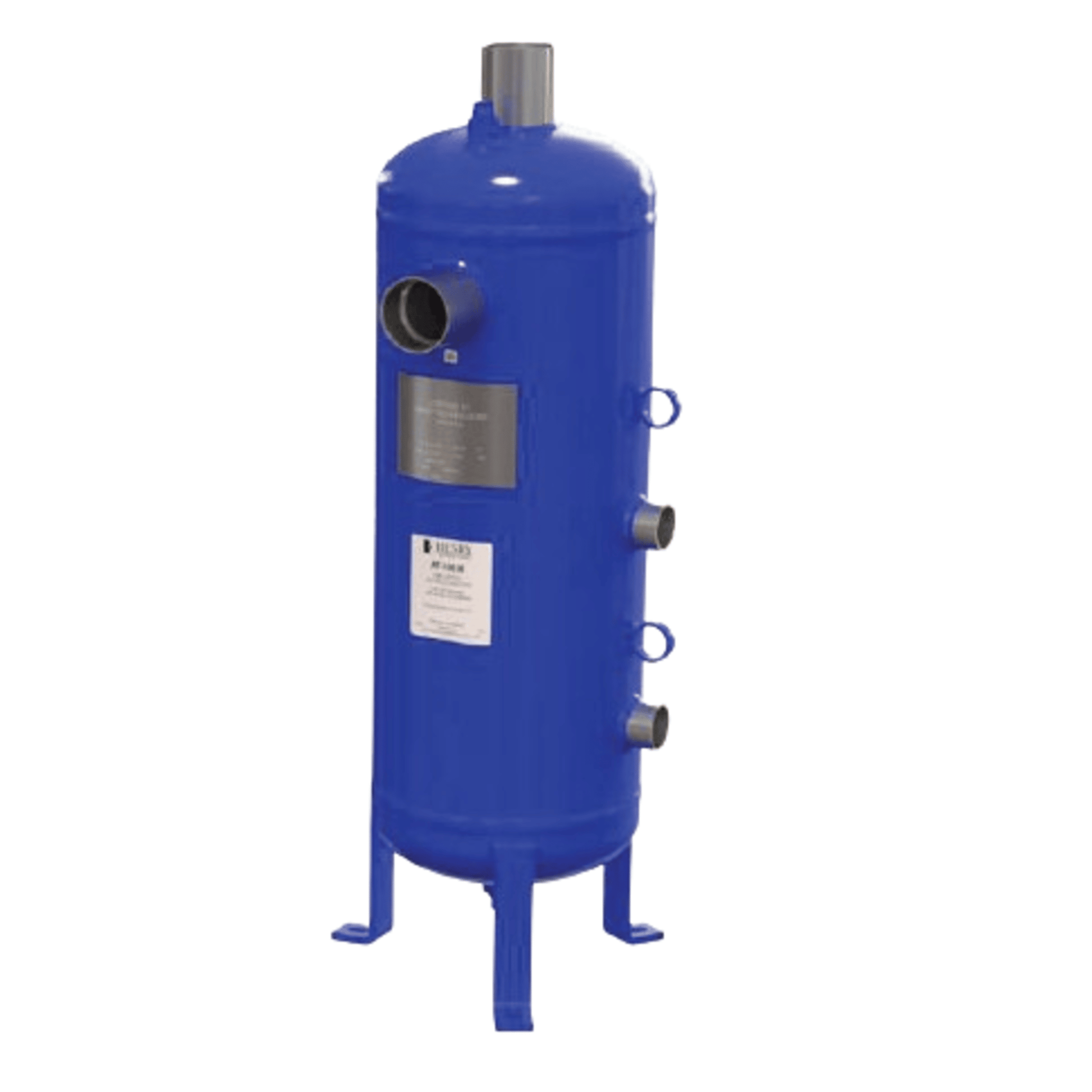

The Henry AF-12030 is a vertical suction line accumulator designed to protect compressors in large-scale refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications and features:

🔧 Technical Specifications

• Model: AF-12030
• Connection Size: 3-1/8" ODS (79.375 mm)
• Mounting Orientation: Vertical
• Material: Heavy-duty steel
• Finish: Powder-coated for corrosion resistance
• Max Working Pressure: Typically around 31 Barg (449.6 PSIg)
• Operating Temperature Range: -30°C to +50°C (-22°F to +122°F)
• Refrigerant Compatibility: CO₂, HFC, HCFC, and other compatible refrigerants

⚙️ Functional Features

• Primary Function: Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
• Controlled Return: Ensures only vapor returns to the compressor.
• Low Pressure Drop: Maintains system efficiency.
• Screen-Protected Orifice: Prevents debris from entering the compressor.
• Optional Heat Exchanger: Some models in the AF series include this feature
