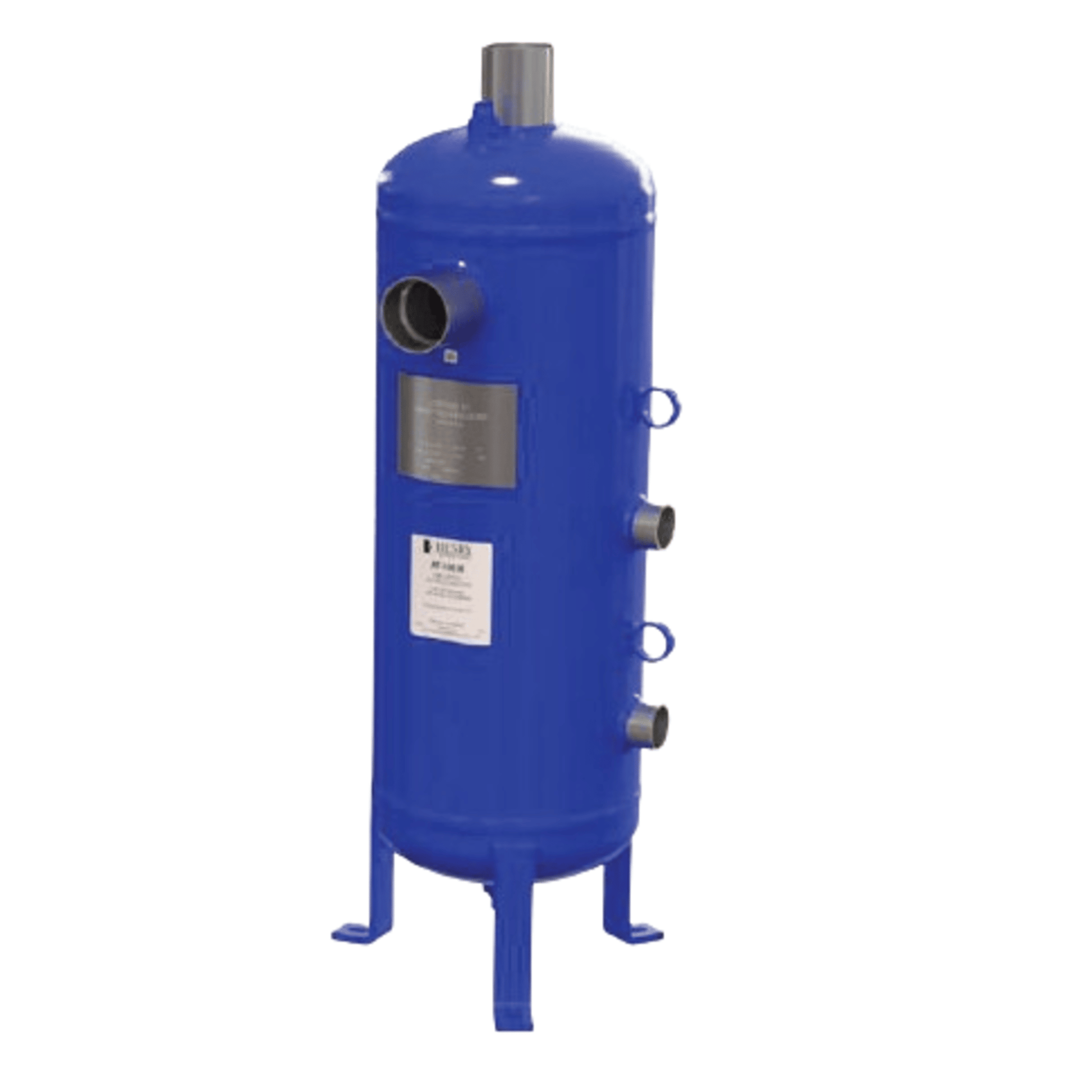

AF-12036 - Henry - 3-1/8 ODS - 79.375mm - Suction Line Accumulator

The Henry AF-12036 is a vertical suction line accumulator designed for use in large-scale refrigeration and air conditioning systems. Here's a detailed overview based on the available data:

🔧 Technical Specifications

• Model: AF-12036
• Connection Size: 3-1/8" ODS (79.375 mm)
• Mounting Orientation: Vertical
• Material: Heavy-duty steel
• Finish: Powder-coated for corrosion resistance
• Weight: Estimated around 180–190 lbs (based on similar models)
• Dimensions: Slightly shorter than the AF-12042 and AF-12048 models, likely around 12.75" diameter × 36–40" length

⚙️ Functional Features

• Primary Function: Prevents liquid slugging by capturing and metering the return of liquid refrigerant and oil to the compressor.
• Controlled Return: Ensures only vapor returns to the compressor.
• Low Pressure Drop: Maintains system efficiency.
• Screen-Protected Orifice: Prevents debris from entering the compressor.
• Optional Heat Exchanger: Some models in this series include this feature.
