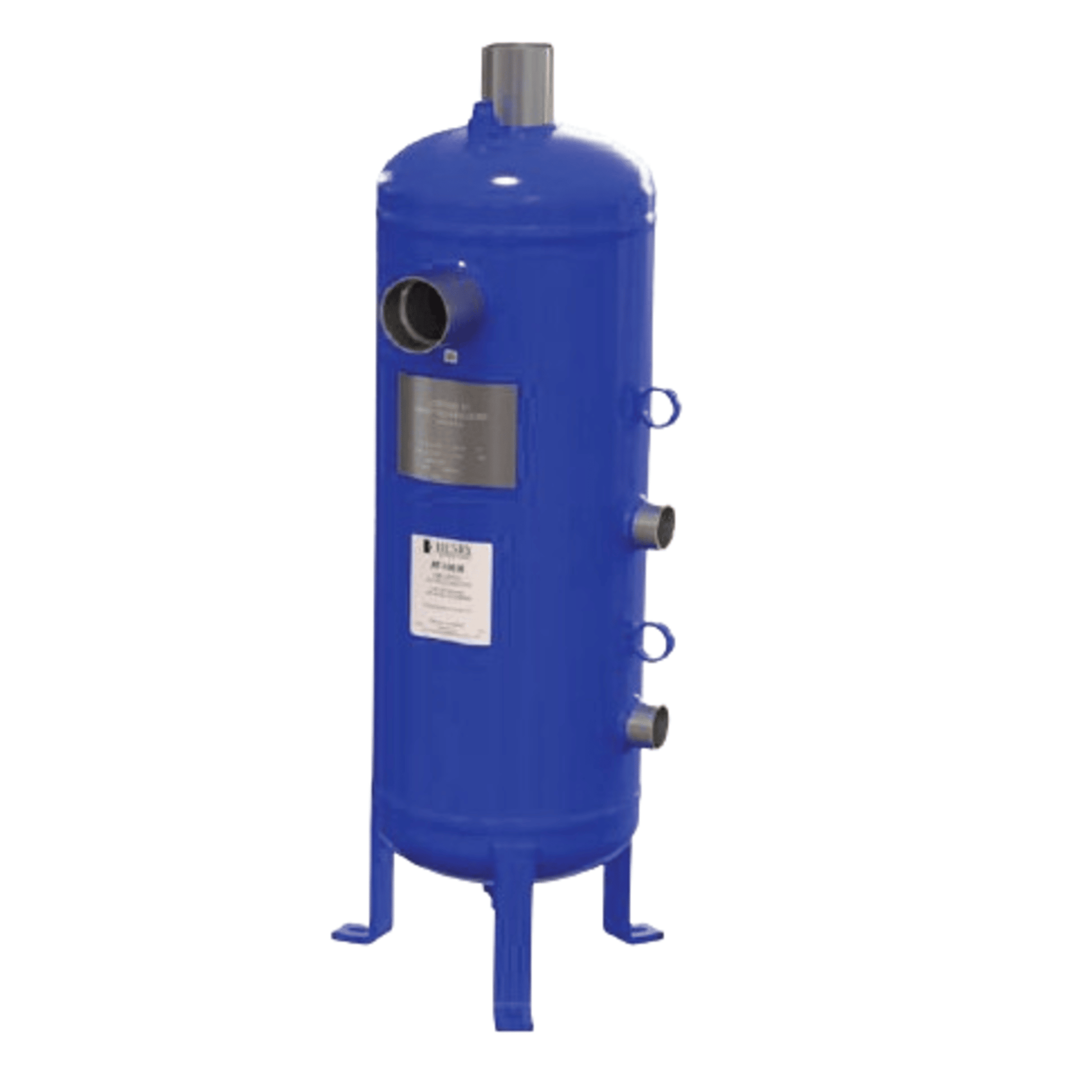

AF-12042 - Henry - 3-1/8 ODS - 79.375mm - Suction Line Accumulator

The Henry AF-12042 is a 3-1/8" ODS (79.375 mm) vertical suction line accumulator, designed for use in large-scale refrigeration and air conditioning systems. Here's a detailed overview based on available specifications:

🔧 Technical Specifications

• Model: AF-12042
• Connection Size: 3-1/8" ODS (79.375 mm)
• Mounting Orientation: Vertical
• Max Flow Capacity: Similar to other AF-12000 series models, likely around 155 CFM
• Material: Heavy-duty steel construction
• Finish: Powder-coated for corrosion resistance
• Weight: Approx. 190–200 lbs (based on similar models)
• Dimensions: Roughly 12.75" diameter × 48" length (estimated)

⚙️ Functional Features

• Primary Function: Prevents liquid refrigerant and oil from returning to the compressor, avoiding liquid slugging.
• Controlled Return: Ensures only vapor returns to the compressor.
• Low Pressure Drop: Maintains system efficiency.
• Screen-Protected Orifice: Prevents debris from entering the compressor.
• Optional Heat Exchanger: Some models in this series offer this feature.
