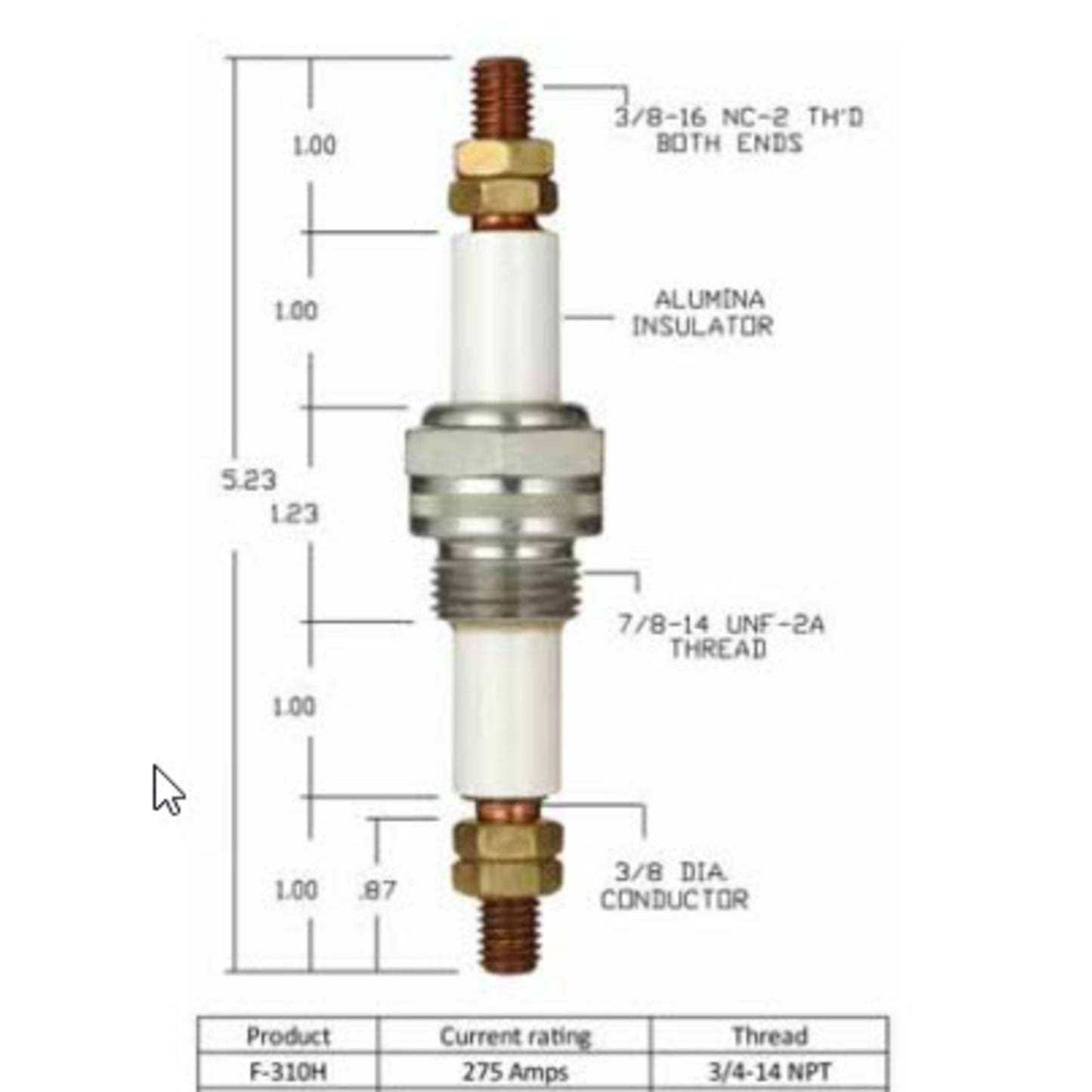

Auburn F-310H Feedthrough (CS13071)

Auburn F-310H Feedthrough (CS13071)

The Auburn F-310H Electric Feedthrough is a robust component used in various industrial applications. Here are some key details:

  • Manufacturer: Auburn
  • Part Number: F-310H
  • Alternate Part Number: CS13071
  • Thread Size: 3/4-14 NPT
  • Hex Size: 1-1/8"
  • Overall Length: 5.23"
  • Porcelain Length: 3.23"
  • Connection: 3/8"-16
  • Conductor Material: Copper
  • Current Rating: 275 Amps
  • Flash-Over Voltage: 12 kV
  • Max Operating Temperature: 200°F.

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors.
