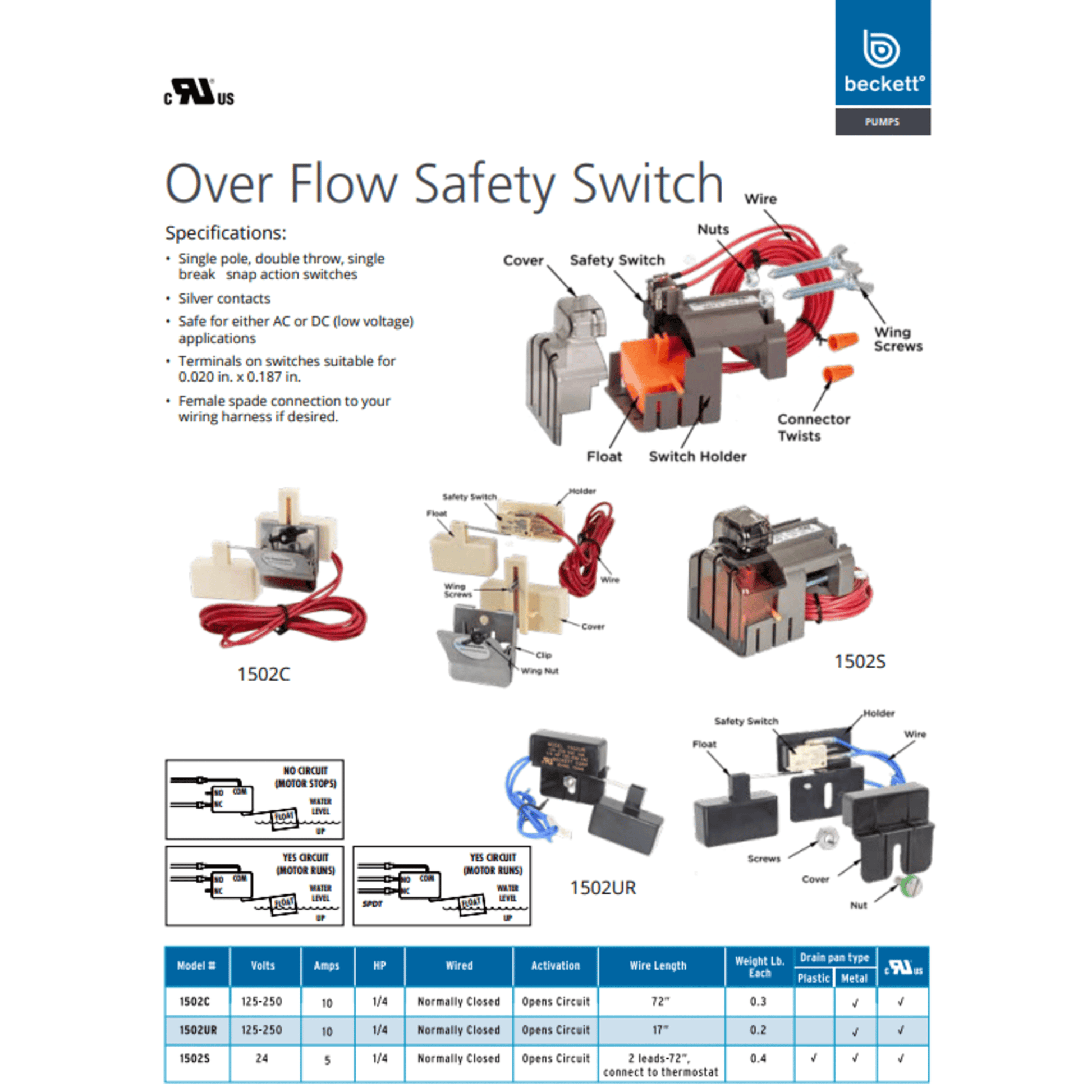

Beckett 1502 Over Flow Safety Switch

Beckett Overflow Safety Switch 1502

The Beckett 1502 Overflow Safety Switch is a reliable and easy-to-use float-actuated switch designed to monitor high water levels in condensate drain pans. This switch helps prevent overflow by shutting down the air conditioner or furnace equipment or by sounding an alarm when the water level becomes too high.

Key Features:

• Voltage: 125-250 VAC, 10 Amp
• Wire Length: 17 inches
• Switch Type: Normally closed, single pole, double throw
• Clamp Type: Drill clamp for secure installation
• Dimensions: 3 inches (L) x 1.1 inches (W) x 2.7 inches (H)
• Application: Suitable for condensate (HVAC) and drain pan (HVAC) applications

The 1502 Overflow Safety Switch is designed for easy installation and reliable operation, ensuring that your HVAC system remains protected from potential water damage
