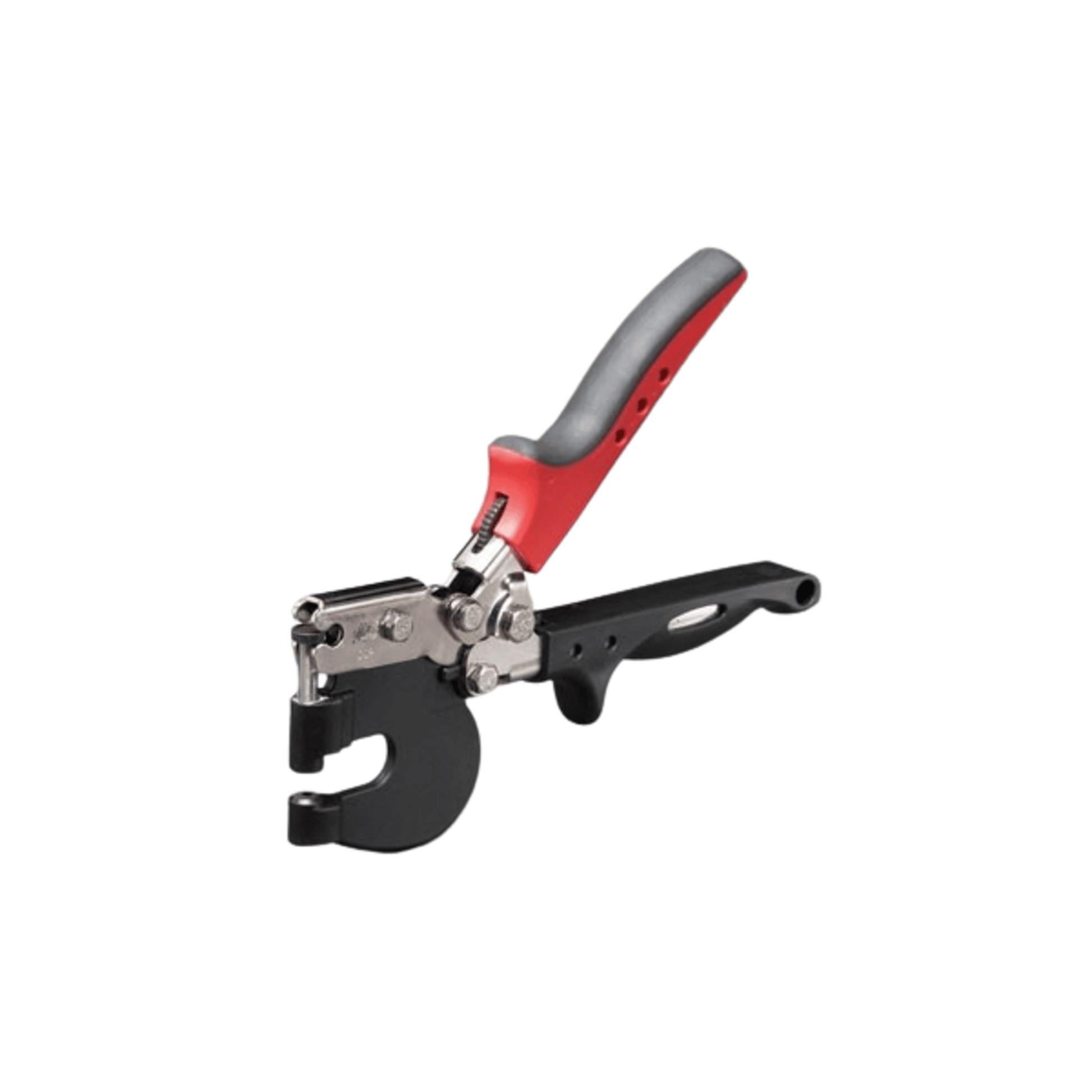

CGPR - Malco - Ceiling Grid Punch 1/8"
Malco CGPR Ceiling Grid Punch.
Malco’s Ceiling Grid Punch makes clean 1/8 inch (3.2 mm) holes in up to three layers of 25 gauge (0.53 mm) ceiling grid. The tool’s slim, but strong, “C” shaped steel frame ensures lightweight, one hand operation and allows easy access into tight corners. It is ideal for punching through main tees and perimeter wall angle that is to be secured with blind rivets. A generous throat opening allows full operation from the edge of both standard 1 inch and 1/2 inch (25.4 and 12.7 mm) grid profiles.
Features
- Malco’s unique Ceiling Grid Punch makes a clean 1/8 in. (3.2 mm) hole in up to three layers of 25 gauge (0.53 mm) ceiling grid.
- Work overhead and in tight corners!
Product Details
- Part Number: CGPR
- Brand: Malco
- Punch: 1/8 in. (3.2 mm)
- Variable Leverage Ratio (High / Low) throughout stroke: 6.7 to 1.0 - 8.4 to 1.0
- Punch / Frame: Tool / Alloy Steel
- Length: 9.5 in. (241 mm)
- Net Weight: 16 oz. (454 g)
- Replacement Parts: CGP18 1/8 in. (3.2 mm) Replacement Punch Only (Die is part of frame) for CGPR · 5018 Handle Spring: Fits All Redline Handled Tool
