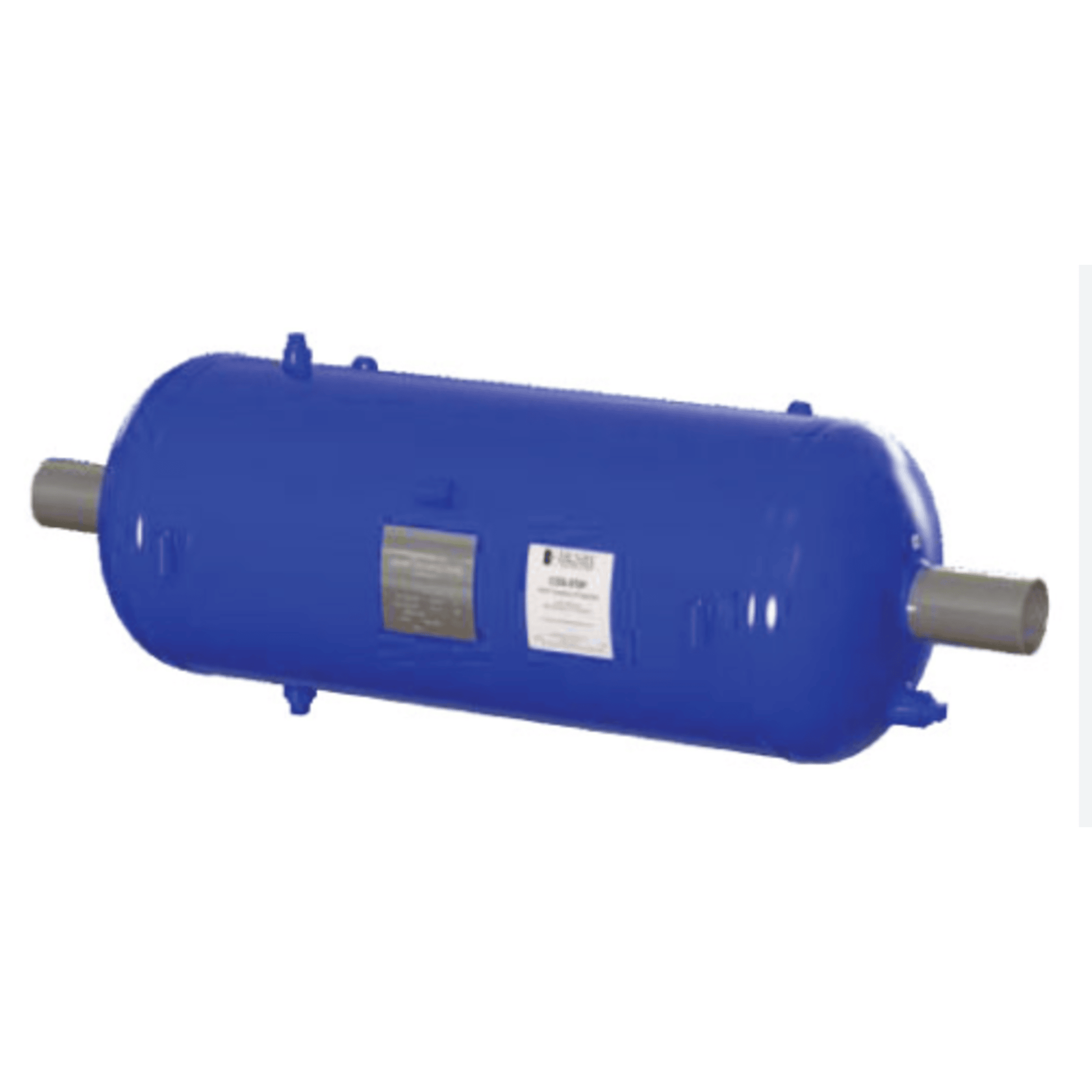

COS-030F - Henry - 2-1/8 ODS - 54mm - Coalescing All Welded ASME

The Henry COS-030F is a 2-1/8" ODS Coalescing Oil Separator, designed for use in commercial refrigeration and air conditioning systems. Here are the key specifications and features:

Product Overview:

• Model: COS-030F
• Connection Size: 2-1/8" ODS (Outside Diameter Solder)
• Separator Type: Coalescing
• Construction: All-welded steel body
• Compliance: ASME certified for pressure vessels

Key Features:

• Low Pressure Drop: Ensures minimal impact on system efficiency.
• Large Filtration Surface Area: Enhances oil separation performance.
• Replaceable Filter Element: Simplifies maintenance (in some models).
• Refrigerant Compatibility: Suitable for CO₂ (R744), HCFC, and HFC refrigerants
• Operating Temperature Range: Typically from -10°C to +130°C (14°F to 266°F)
• Maximum Working Pressure: Up to 48 Barg (696.1 PSIg), depending on model variant
