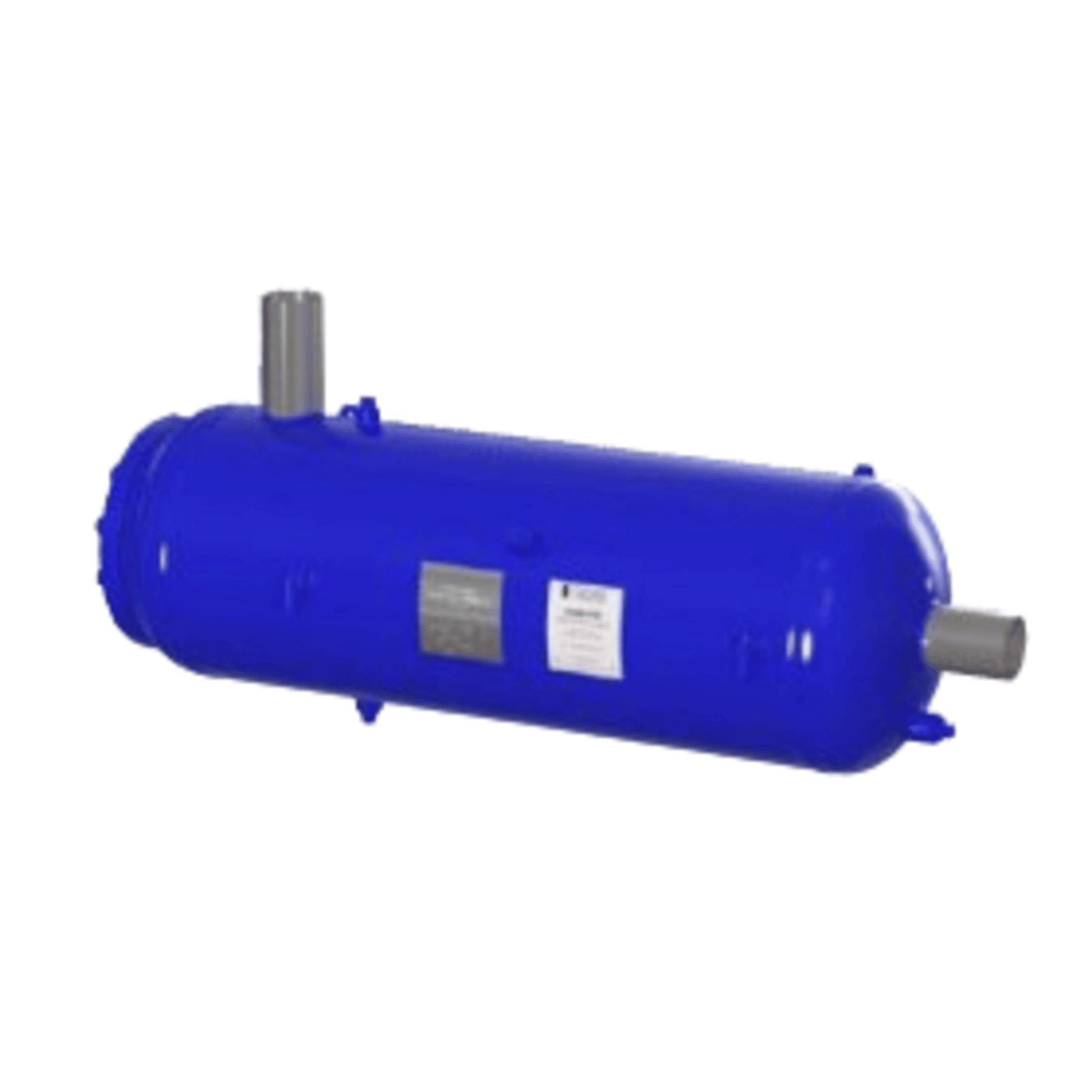

COSM-070 - Henry - 2-1/2 BW - 64mm - Coalescing Oil Separator

The Henry COSM-070 Coalescing Oil Separator is a high-efficiency unit designed for industrial refrigeration systems. Here's a detailed overview of its specifications and features:

Product: Henry COSM-070 Coalescing Oil Separator

• Model: COSM-070
• Connection Size: 2-1/2" BW (Butt Weld)
• Shell Diameter: 64 mm
• Construction: All-welded steel
• Design Standard: ASME Section VIII

Key Features

• Oil Separation Function: Removes oil from discharge gas and returns it to the compressor, improving system efficiency and maintaining crankcase oil levels
• Replaceable Coalescing Filter Element: Allows for easy maintenance and long service life
• Low Pressure Drop: Optimized internal design minimizes flow resistance
• Large Filtration Surface Area: Enhances oil separation performance
• Application: Suitable for use with CO₂ (R744), HCFCs, and HFCs

Technical Specifications

• Maximum Working Pressure: 48 bar (696.1 PSIg)
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Mounting Orientation: Typically vertical
• Weight: Approx. 195 lbs
