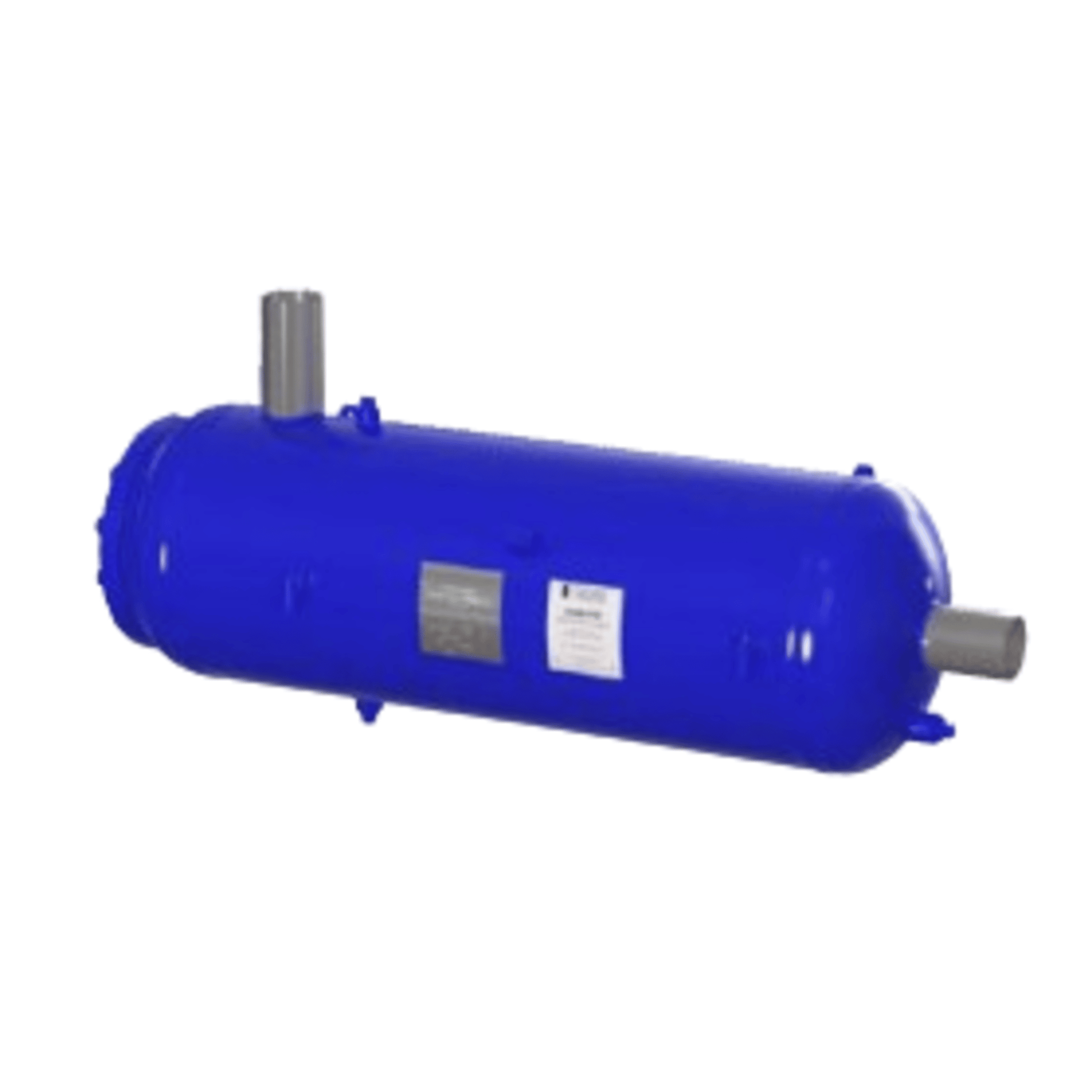

COSM-070F - Henry - 2-5/8 ODS - 67mm - Coalescing Oil Separator

The Henry COSM-070F Coalescing Oil Separator is a high-efficiency component designed for use in refrigeration and air conditioning systems. Here's a detailed overview of its specifications and features:

Product: Henry COSM-070F Coalescing Oil Separator

• Model: COSM-070F
• Connection Size: 2-5/8" ODS (Outside Diameter Solder)
• Shell Diameter: 67 mm
• Filtration Type: Coalescing with replaceable internal screen

Key Features

• High-Efficiency Oil Separation: Removes oil from discharge gas and returns it to the compressor, improving system efficiency and maintaining crankcase oil levels
• Replaceable Filter Element: Allows for easy maintenance and extended service life
• Low Pressure Drop: Optimized internal design minimizes flow resistance
• Large Filtration Surface Area: Enhances oil separation performance
• Application: Suitable for use with CO₂ (R744), HCFC, and HFC refrigerants

Technical Specifications

• Maximum Working Pressure: 48 Barg (696.1 PSIg)
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
• Certifications: AS2971.2, CE, UKCA, UL207
